  9. Analog Panel Mt Thermometer, 30 to 240F
Zoro Select

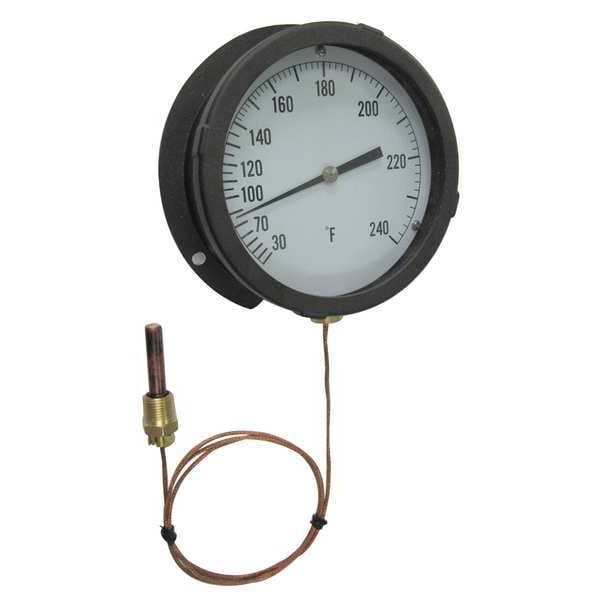

Analog Panel Mt Thermometer, 30 to 240F

Zoro Select Analog Panel Mt Thermometer, 30 to 240F 12U666
Tap to zoom
Hover or click to zoom
$204.09
  • Item: Analog Panel Mount Thermometer
  • Sensing Medium: Vapor Actuated
  • Sensor Length: 1.87 in
See full product details
This item ships free.
Total: $204.09

Zoro Select #12U666 Specifications

  • Item: Analog Panel Mount Thermometer
  • Sensing Medium: Vapor Actuated
  • Sensor Length: 1.87 in
  • Dial Size: 6 in
  • Sensor Dia.: 0.437 in
  • Tube Length: 60 in
  • Temp. Range (F): 30 Degrees to 240 Degrees
  • Case Material: Cast Aluminum
  • Temp. Range (C): 1 Degrees to 115 Degrees
  • Accuracy: +/-1 Degrees F Scale Division
  • Mounting: Surface with Bottom Outlet
  • Tube Material: Bronze Braided Copper
  • Sensor Connection: 1/2 in NPT
  • Sensor Material: Copper
  • Lens Material: Glass
  • Mounting Style: Back Flange
  • Dial Diameter: 6 in
  • Maximum Temperature F: 240 Degrees F
  • Probe Material: Copper
  • Thread Size: 1/2 in
  • Probe Length: 2 in
  • Sensor Technology: Vapor-Actuated
  • Thread Type: NPT
  • Construction: Aluminium Housing with Glass Lens
  • Temperature Range: 30 Degrees to 240 Degrees F
  • Flange Outside Diameter: 7.4 in
  • Housing Material: Aluminium
  • Scale Type: Dial
  • Includes NIST-Traceable Certificate: No
  • Mounting Hole Diameter: 1/4 in
  • Minimum Temperature F: 30 Degrees F
  • Probe Built: 0.4 in Dia x 2 in L Copper Probe
  • Scale: Fahrenheit
  • NSF Rated: No
  • Process Connection: 1/2 in MNPT with 5 ft Cable
  • Thermometer Type: Remote Reading
  • Cable Length: 5 ft
  • Temperature Graduations: 2 Degrees F
  • Probe Diameter: 0.4 in
  • Thread Gender: Male
  • Minimum Temperature °F: 30 Degrees F
  • Maximum Temperature °F: 240 Degrees F
  • Country of Origin (subject to change): China

Description

Analog Panel Mount Thermometer, Vapor Actuated, 30 Degrees to 240 Degrees Temp. Range (F), Dial Size 6 in, Mounting Surface with Bottom Outlet, Tube Length 60 in, Case Material Cast Aluminum, Lens Material Glass, Tube Material Bronze Braided Copper, Sensor Material Copper, Sensor Length 1.87 in, Sensor Dia. 0.437 in, Sensor Connection 1/2 in NPT, 1 Degrees to 115 Degrees Temp. Range (C), Accuracy +/-1 Scale Division
