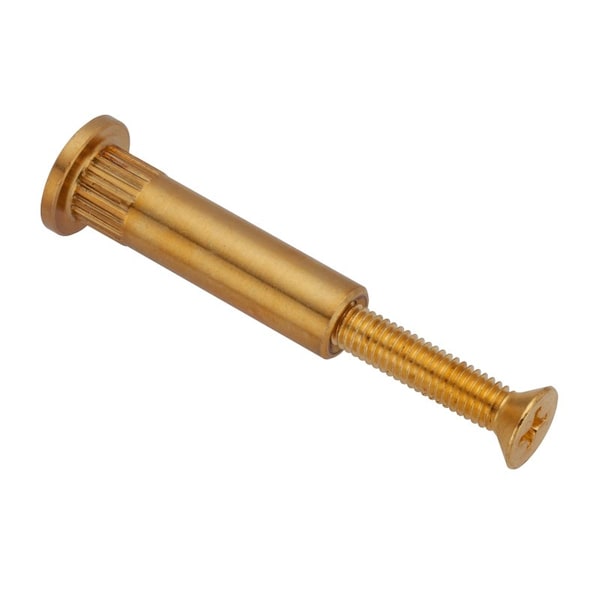

Arch Barrel, #10-32, 1 3/16 in Brl Lg, 5/16 in Brl Dia, Brass Plain
Mfr # Z5005
Zoro # G2208044
original price:
$3.95
9% off
new price: $3.59
/ea
$3.59
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- System of Measurement Inch
- Type Knurled Barrel
- Material Brass
- Finish Plain
- Barrel Length 1 3/16 in
Product Information
- Brand Zoro Select
- MFR # Z5005
- Zoro # G2208044
- Country of Origin United States
- Category Binding Barrels
Dimensions
| Thread Size | #10-32 |
| Barrel Length | 1 3/16 in |
| Barrel Diameter | 5/16 in |
| Barrel Dia. | 5/16 in |
| Barrel Head Dia. | 1/2 in |
| Barrel Thread Depth | 3/4 in |
| Barrel Head Height | 1/8 in |
| Screw Head Height | 0.116 in |
| Dia./Thread Size | #10-32 |
| Screw Thread Length | 1 in |
| Screw Head Dia. | 23/64 in |
| Outside Dia. | 5/16" |
| Screw Minimum Thread Length | 1 in |
| Screw Size | #10-32 |
| Screw Head Diameter | 23/64 in |
| Dimensional Standards | AMPG 2000 SB.01 |
| Grip Size | 1 3/8 in |
| Barrel Head Diameter | 1/2 in |
Details
Description
Architectural Bolt, Material Brass, Barrel Head Style Truss, Screw Head Style Flat, Thread Size #10-32, Barrel Length 1 3/16 in, Barrel Diameter 5/16 in, Barrel Thread Depth 3/4 in, Barrel Drive Type No Drive, Screw Drive Style Phillips, Finish Plain, Barrel Head Diameter 0.5 in, Barrel Head Height 1/8 in, Dimensional Standards AMPG 2000 SB.01, Grip Size 1 3/8 in, Includes 82 Degree Screw, Made in North America Yes, Pack Size Small
