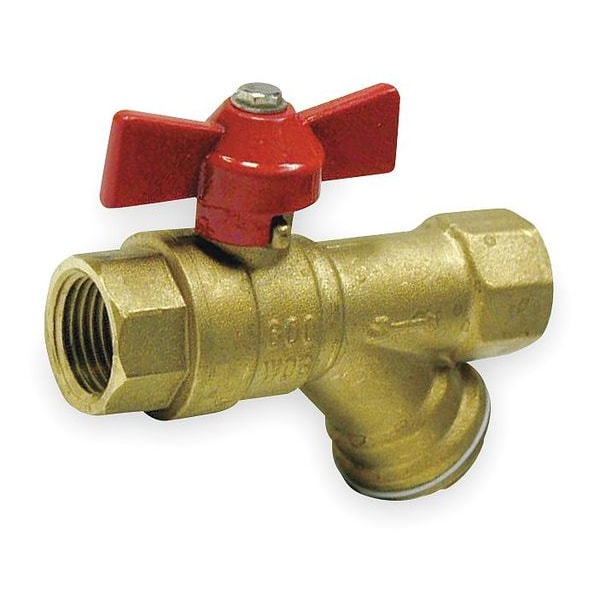

Ball Valve, Brass, 3/4 In NPT F x F

product price: $32.95
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Body Material Forged Brass
  • Connection Type FNPT x FNPT
  • Seat Material PTFE
  • Port Full
  • Screen Material Stainless Steel
See all product information

Product Information

Dimensions

Pipe Size 3/4"
Overall Length 3.95 in
Handle Length 2.25 in
Bypass Connection Size 3/4 in
Outlet Connection Size - Side 1 3/4 in
Outlet Connection Size - Side 2 3/4 in
Nominal Valve Size 3/4 in

Details

Body Material Forged Brass
Connection Type FNPT x FNPT
Seat Material PTFE
Port Full
Screen Material Stainless Steel
Ball Valve Product Group Manual
Ball Material Chrome Plated Brass
Handle Material Zinc
Ball Valve Basic Body Material Brass
Max. Pressure 600 psi CWP
Handle Type Butterfly
Stem Type Blowout Proof
Temp. Range -40 Degrees to 400 Degrees F
Seal Material EPDM
Item Combination Strainer/Ball Valve
Stem Material Brass
Outlet Connection Gender - Side 1 Female
Operating Temperature - Maximum 400 Degrees F
Maximum Pressure - Operating 600 psi
Bypass Cap Material Brass
Outlet Connection Gender - Side 2 Female
Ball Port Style Full Port
For Media Air, Oil, Steam, Water
Bypass Connection Gender Female
Outlet Connection Type - Side 2 NPT
Bypass Connection Type NPT
Manufacturer Warranty 3 yr
Operating Temperature - Minimum -40 Degrees F
Outlet Connection Type - Side 1 NPT

Description

Combination Strainer, Body Material Brass, Ball Port Style Full Port, Nominal Valve Size 3/4 in, Maximum Pressure - Operating 600 psi, Outlet Connection Size - Side 1 3/4 in, Outlet Connection Gender - Side 1 Female, Outlet Connection Type - Side 1 NPT, Outlet Connection Size - Side 2 3/4 in, Outlet Connection Gender - Side 2 Female, Outlet Connection Type - Side 2 NPT, Bypass Connection Size 3/4 in, Bypass Connection Gender Female, Bypass Connection Type NPT, Handle Type Tee

Restrictions

  • WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • *** This is a restricted item. It cannot be used in the USA for potable water applications.
