  11. Ball Valve, Inline, Brass Body, 3/4"Pipe
Shop All Ball Valves
Zoro Select

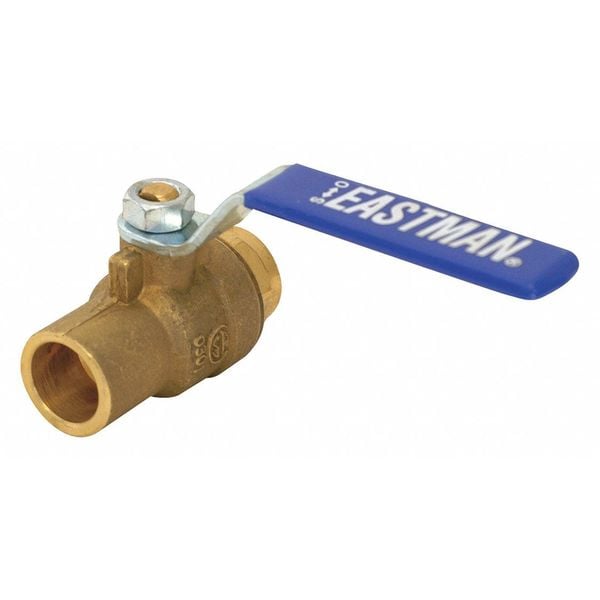

Ball Valve, Inline, Brass Body, 3/4"Pipe

original price: $13.39
8% off
new price: $12.19
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Pipe Size 3/4"
  • Body Material Brass
  • Body Style Inline
  • Tube Size 1/2"
  • Features Heavy Duty
See all product information

Product Information

Dimensions

Pipe Size 3/4"
Tube Size 1/2"
Nominal Valve Size 3/4 in
Connection Size - Side 1 3/4 in
Connection Size - Side 2 3/4 in

Details

Body Material Brass
Body Style Inline
Features Heavy Duty
Handle Type Lever
Port Full
Stem Type Blowout Proof
Temp. Range Up to 200 Degrees F
Valve Structure 2-Piece
Compliance CSA, NSF
Body Seal Material Buna-N
Hose I.D. 3/4"
Max. Pressure 150 psi CWP
Connection Type Sweat x Sweat
Stem Material brass
Item Ball Valve
Standards AB 1953, CSA, cUPC, NSF
Seat Material PTFE
Handle Material Steel with Vinyl Grip
Max. Steam Pressure 150 psi WSP
Ball Material Brass
Seal Material Buna-N
Ball Port Style Full Port
Maximum Pressure - Operating 150 psi
Connection Type - Side 1 Sweat
Valve Ways 2-Way
NSF Certifications for Food and Drinking Water NSF 61
Operating Temperature - Minimum 0 Degrees F
Valve Body Style Straight
3-A Standard Compliance Not Rated
Operating Temperature - Maximum 200 Degrees F
Maximum Pressure - Combustible Gas Not Rated
Valve Construction Two-Piece
For Media Water
Connection Type - Side 2 Sweat
Color - Valve Handle Blue
Maximum Pressure - Steam 150 psi

Description

Manual Two-Way Ball Valve, Body Material Brass, For Media Water, Valve Construction Two-Piece, Nominal Valve Size 3/4 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 150 psi, Maximum Pressure - Steam 150 psi, Maximum Pressure - Combustible Gas Not Rated, Ball Material Brass, Ball Port Style Full Port, Handle Type Lever, Connection Size - Side 1 3/4 in, Valve Ways 2-Way, Seal Material Buna-N
