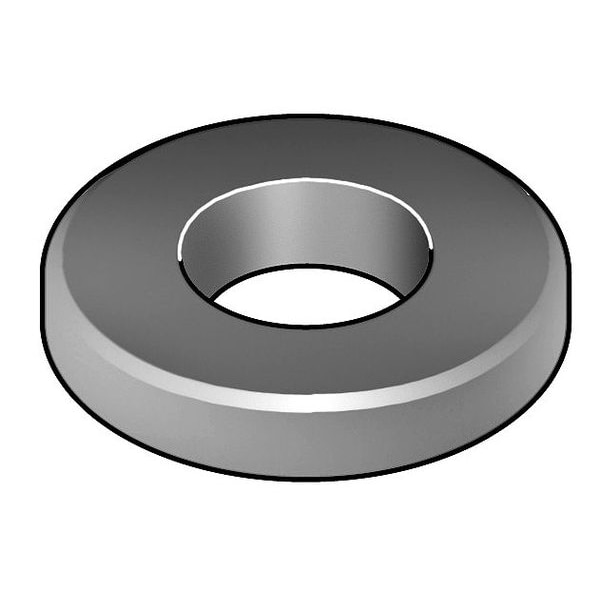

Beveled Washer, Steel, Grade 2, Oiled Finish, 10 PK
Mfr # Z9186-BEV
Zoro # G2364205
CAD Available
product price: $21.89
/pk 10, $2.19/eaKey Features
CAD Drawing
Material
Steel
Finish
Oiled
Thickness
0.250 in
Inside Dia.
0.656 in
System of Measurement
Inch
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
Z9186-BEV
Zoro #
G2364205
UPC #
-
Country of Origin
United States
Dimensions
Fits Bolt Sizes
5/8 in
Thickness
0.250 in
Inside Dia.
0.656 in
Washer Outside Dia.
1 1/4 in
Washer Inside Dia.
21/32 in
Outside Dia.
1.250 in
Outside Diameter
1 1/4 in
Inside Diameter
0.656 in
For Screw Size
5/8 in
Outside Diameter Tolerance
+/-0.010 in
Maximum Thickness
1/4 in
Minimum Thickness
1/4 in
Inside Diameter Tolerance
+/-0.010 in
Description
Beveled Flat Washer, Flat Washer Type Beveled, Dimensional Standards AMPG 2001 BEV.01, Material Steel, Material Grade/Class Case Hardened, Finish Black Oxide, For Screw Size 5/8 in, Inside Diameter 0.656 in, Outside Diameter 1 1/4 in, Maximum Thickness 0.25 in, System of Measurement Inch, Minimum Thickness 0.25 in, Inside Diameter Tolerance +/-0.010 in, Material Quality Standards ASTM A108, Outside Diameter Tolerance +/-0.010 in, Pack Size Small Pack, Rockwell Hardness B55
