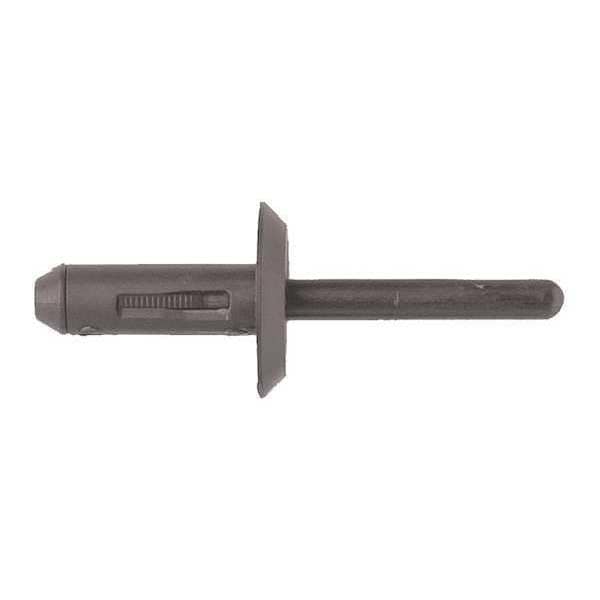

Blind Rivet, Dome Head, 17/64 in Dia., 13/16 in L, Nylon Body, 25 PK
Mfr # 5775PK
Zoro # G5103287
CAD Available
product price: $8.15
/pk 25, $0.33/eaKey Features
CAD Drawing
Head Type
Dome
Body Material
Nylon
Mandrel Material
Nylon
Rivet Diameter
17/64 in
Grip Range
0.093 in to 0.187 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
5775PK
Zoro #
G5103287
UPC #
841213006690
Country of Origin
Taiwan, Province of China
Dimensions
Rivet Diameter
17/64 in
Body Length
13/16 in
Head Height
3 mm
Hole Size
17/64 in
Head Dia.
23/32 in
Shank Diameter
0.2656 in
Head Diameter
23/32 in
Minimum Material Thickness
3/32 in
Maximum Material Thickness
3/16 in
Maximum Hole Diameter
0.2656 in
Details
CAD Available
Yes
Item
Blind Rivet
Head Type
Dome
Body Material
Nylon
Mandrel Material
Nylon
Grip Range
0.093 in to 0.187 in
System of Measurement
Inch
Color
Black
Blind Rivet Type
Open End
Material Grade/Class
Ungraded
Description
Blind Rivet,17/64 in dia,PK25, System of Measurement Inch, Body Length 13/16 in, Shank Diameter 0.2656 in, Product Type Blind Rivet, Body Material Nylon, Head Type Dome, Head Diameter 23/32 in, Maximum Hole Diameter 0.2656 in, Minimum Material Thickness 3/32 in, Maximum Material Thickness 3/16 in, Material Grade/Class Ungraded, Mandrel Material Nylon, Color Black, Package Quantity 25
