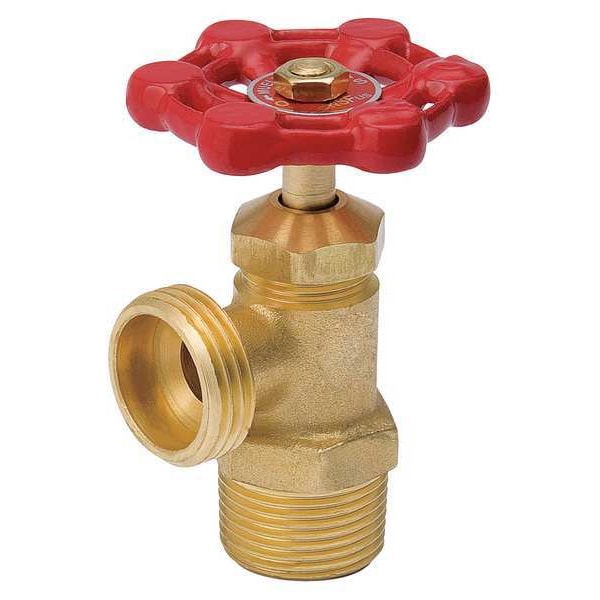

Boiler Drain Valve, 1/2 in., MPT x MPT
Mfr # 102-003NL
Zoro # G6220462
product price:Â
$
10.19
/ea
Key Features
Pipe Size - Valves
1/2 in
Connection Type
MNPT x MGHT
Body Material - Valves
Brass
Handle Material
Cast Iron
Max. Pressure
125 psi
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 102-003NL
- Zoro #
- G6220462
- UPC #
- 032888167216
- Country of Origin
- China
Dimensions
- Pipe Size - Valves
- 1/2 in
- Pipe Size
- 1/2"
- Overall Length
- 3.25 in
- Outlet Pipe Size
- 3/4 in
- Inlet Pipe Size
- 1/2 in
- Wire Rope Length
- 3.25 in
- Length
- 3.25 in
Details
- Item
- Boiler Drain Valve
- Connection Type
- MNPT x MGHT
- Body Material - Valves
- Brass
- Handle Material
- Cast Iron
- Max. Pressure
- 125 psi
- Standards
- ANSI B1.20.1, ANSI B1.20.7, ASME A112.18.1, CSA B125.1, NSF/ANSI 14, NSF/ANSI 372
- Body Material
- Brass
- Handle Type
- Wheel
- Handle Operation
- Multi-Turn
- Inlet Connection Type
- IPS
- Maximum Pressure
- 125 psi
- Pipe Connection Type
- MIP x MHT
- Maximum Media Temperature
- 180 Degrees F
- Outlet Connection Type
- GHT
- Outlet Connection Gender
- Male
- Inlet Connection Gender
- Male
Description
Boiler Drain Valve, Inlet Pipe Size 1/2 in, Inlet Connection Type IPS, Inlet Connection Gender Male, Outlet Pipe Size 3/4 in, Outlet Connection Gender Male, Outlet Connection Type GHT, Body Material Brass, Maximum Media Temperature 180 Degrees F, Overall Length 3.25 in, Handle Type Wheel, Handle Operation Multi-Turn, Handle Material Cast Iron, Maximum Pressure 125 psi, Standards ANSI B1.20.1, ANSI B1.20.7, ASME A112.18.1, CSA B125.1, NSF/ANSI 14, NSF/ANSI 372, Pipe Connection Type MIP x MHT
