  11. Bolt-Hole Caster, 4"dia, Swivel, Nylon

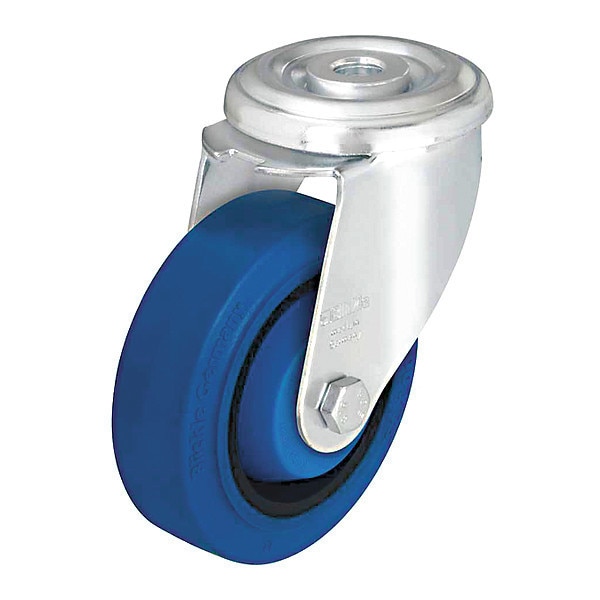

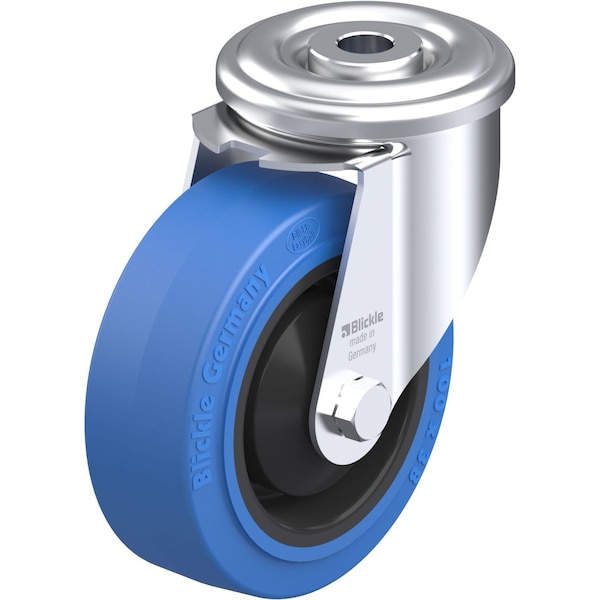

Zoro Select Bolt-Hole Caster, 4"dia, Swivel, Nylon LER-POEV 100KA-SB - main

Bolt-Hole Caster, 4"dia, Swivel, Nylon

  • Mfr # LER-POEV 100KA-SB

  • Zoro # G4561810

product price: $28.29
/ea

Key Features

Caster Sub-Type
Swivel
Caster Product Group
Swivel Caster
Load Rating
330 lb
Wheel Dia.
4 in
Wheel Width
1-1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LER-POEV 100KA-SB
Zoro #
G4561810
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
4 in
Wheel Width
1-1/2 in
Mounting Height
7 11/16 in
Mounting Bolt Dia.
1/2 in
Overall Height
4-15/16 in
Bolt Hole Dia.
1/2 in
Swivel Radius
3-3/4 in
Tire Thickness
7/16 in

Details

Item
Swivel Hollow Kingpin Caster
Caster Sub-Type
Swivel
Caster Product Group
Swivel Caster
Load Rating
330 lb
Wheel/Tread Material
Nylon
Wheel/Tread Hardness Rating
Soft
Wheel Bearing Type
Ball
Caster Brake Type
No Brake
Non-Marking
Yes
Number of Wheels
1
Frame Finish
Zinc Plated
Caster Frame Material
Steel
Wheel Core Material
Nylon
Core Color
Black
Application
Retail, Industrial, Commercial
Features
Floor Protective, Noise Reduction
Standards
RoHS, ICWM
Caster Temp. Range
-15 Degrees To 175 Degrees F
Wheel Color
Blue
Replacement Wheel
Mfr. No. POEV 100/8K-SB
Caster Temp. Range Available
Yes
Caster Load Rating Range
Medium Duty
Caster Wheel/Tread Material
EasyRoll Elastic Solid Rubber
Caster Wheel Bearings
Precision Ball
Caster Stem Type
Hollow Kingpin
Load Capacity
330 lb
Frame Material
Steel
System of Measurement
Inch
Caster Raceway
Double Ball
Caster Swivel Lock Type
No Lock Included
Caster Core Material
Nylon
Caster Brake Included
No
Caster Wheel Shape
Standard
Operating Temperature Range
-20 Degrees to 180 Degrees F
Tread Shape
Standard
Swivel Raceway Type
Double Ball
Wheel/Tread Hardness
65 Shore A
Wheel/Tread Color
Black
Series
LER Series
Includes Thread Guards
No
Tread
Standard
Extended Lead
No
Caster Mounting Type
Hollow Kingpin
Resistant To
High Chemical Resistance To Many Aggressive Substances, Except Oils
ESD Conductive
No
Tread Color
Blue
Caster Break Type
No Brake Included
Operating Temperature - Maximum
175 Degrees F
Wheel Hardness Rating
65 Shore A
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance-Free, Quiet-Roll
Compatible Wheel Manufacturer Model Number
POEV 100/8K-SB
Load Capacity - Maximum
330 lb
Operating Temperature - Minimum
-5 Degrees F

Description

Bolt-Hole Caster, 1/2 in Bolt Hole Dia., 1/2 in Mounting Bolt Dia., Steel Caster Frame Material, Zinc Plated Frame Finish, 300 to 999 lb Load Rating Range, 330 lb Load Rating, 1 Number of Wheels, Ball, 7 3/5 in Mounting Height, 4 in Wheel Dia., 1 1/2 in Wheel Width, Nylon Wheel/Tread Material, 65 Shore A Wheel/Tread Hardness, Soft, Yes Non-Marking
