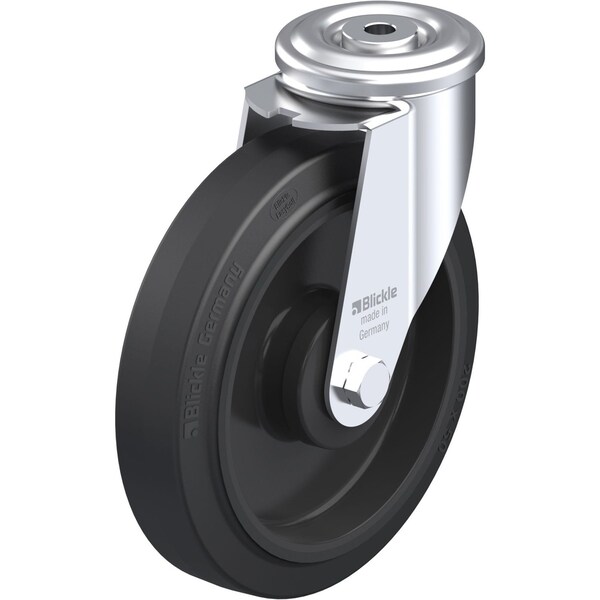

Bolt-Hole Caster, 7 7/8"dia, Swivel, Rubber

  • Mfr # LER-POEV 200KA

  • Zoro # G1625922

product price:
$
89.69
/ea

Key Features

Caster Sub-Type
Swivel
Caster Product Group
Swivel Caster
Load Rating
660 lb
Wheel Dia.
8 in
Wheel Width
2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LER-POEV 200KA
Zoro #
G1625922
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
8 in
Wheel Width
2 in
Mounting Height
9 1/5 in
Mounting Bolt Dia.
1/2 in
Overall Height
9-1/4 in
Swivel Radius
6-1/8 in
Tire Thickness
7/8 in
Bolt Hole Dia.
7/16 in

Details

Item
Swivel Hollow Kingpin Caster
Caster Sub-Type
Swivel
Caster Product Group
Swivel Caster
Load Rating
660 lb
Wheel/Tread Material
Rubber
Wheel/Tread Hardness Rating
Soft
Wheel Bearing Type
Ball
Caster Brake Type
No Brake
Non-Marking
No
Number of Wheels
1
Frame Finish
Zinc Plated
Caster Frame Material
Steel
Wheel Core Material
Nylon
Core Color
Black
Application
Retail, Industrial, Commercial
Features
Noise Reduction
Standards
RoHS, ICWM
Caster Brake Included
No
Caster Swivel Lock Type
No Lock Included
Replacement Wheel
Mfr. No. POEV 200/12K
Wheel Color
Black
Caster Core Material
Nylon
Caster Stem Type
Hollow Kingpin
Caster Mounting Type
Hollow Kingpin
Caster Temp. Range Available
Yes
Tread Color
Black
Caster Load Rating Range
Medium Duty
Extended Lead
No
Caster Raceway
Double Ball
Frame Material
Steel
Tread
Standard
System of Measurement
Inch
Caster Wheel Shape
Standard
Caster Temp. Range
-15 Degrees To 175 Degrees F
Caster Wheel/Tread Material
EasyRoll Elastic Solid Rubber
Caster Wheel Bearings
Precision Ball
Swivel Raceway Type
Double Ball
Tread Shape
Standard
Operating Temperature Range
-20 Degrees to 180 Degrees F
Wheel/Tread Hardness
65 Shore A
Wheel/Tread Color
Black
Resistant To
High Chemical Resistance To Many Aggressive Substances, Except Oils
Caster Break Type
No Brake Included
ESD Conductive
No
Series
LER Series
Load Capacity
660 lb
Includes Thread Guards
No
Compatible Wheel Manufacturer Model Number
POEV 200/12K
Operating Temperature - Maximum
175 Degrees F
Operating Temperature - Minimum
-5 Degrees F
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance-Free, Quiet-Roll
Wheel Hardness Rating
65 Shore A
Load Capacity - Maximum
660 lb

Description

Bolt-Hole Caster, 7/16 in Bolt Hole Dia., 7/16 in Mounting Bolt Dia., Steel Caster Frame Material, Zinc Plated Frame Finish, 300 to 999 lb Load Rating Range, 660 lb Load Rating, 1 Number of Wheels, Ball, 9 1/5 in Mounting Height, 7 7/8 in Wheel Dia., 2 in Wheel Width, Rubber Wheel/Tread Material, 65 Shore A Wheel/Tread Hardness, Soft, No Non-Marking
