  11. Caster Wheel, 1/2 in. Bore Dia., 360 lb.

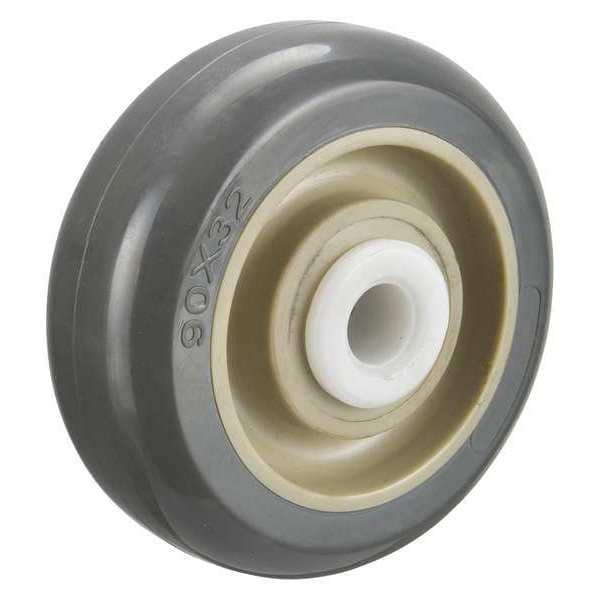

Zoro Select Caster Wheel, 1/2 in. Bore Dia., 360 lb. P-UP-035X013/050D-AM - main

Caster Wheel, 1/2 in. Bore Dia., 360 lb.

  • Mfr # P-UP-035X013/050D-AM

  • Zoro # G1257295

product price: $9.79
/ea

Key Features

Wheel Dia.
3-1/2 in
Wheel Width
1-1/4 in
Fits Axle Dia.
1/2 in
Caster Load Rating Range
Light-Medium Duty
Load Rating
360 lb
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P-UP-035X013/050D-AM
Zoro #
G1257295
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
3-1/2 in
Wheel Width
1-1/4 in
Fits Axle Dia.
1/2 in
Hub Length
1 7/16 in
Bore Dia.
1/2"
For Axle Size
1/2 in
Hub Width
1-7/16 in

Details

Caster Load Rating Range
Light-Medium Duty
Load Rating
360 lb
Caster Core Material
Polypropylene
Caster Wheel/Tread Material
Polyurethane
Wheel Color
Gray
Caster Wheel Shape
Crown
Spanner Bushing
Included
Core Color
Gray
Non-Marking
Yes
Includes
Anti-Microbial Tread
Item
Polyurethane Tread On Polypropylene Hub Wheel
Resistant To
High Chemical Resistance To Many Aggressive Substances
Caster Temp. Range Available
Yes
Caster Temp. Range
-15 Degrees To 160 Degrees F
Durometer
90 Shore A
Caster Wheel Bearings
Delrin
Features
Antimicrobial
Tread Shape
Standard
Operating Temperature Range
-40 Degrees to 180 Degrees F
includes Spanner Bushing
No
Wheel/Tread Material
Polyurethane
Wheel Core Material
Polypropylene
Wheel Bearing Type
Delrin
Wheel/Tread Hardness Rating
Hard
Wheel/Tread Color
Gray
Wheel/Tread Hardness
50-60 Shore D
Includes Spanner Bushing
Not Included
System of Measurement
Inch
ESD Conductive
No
Series
P-UP Series
Tread Color
Gray
Extended Lead
No
Caster Product Group
Wheels
Number of Wheels
1
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Tread
Standard
Load Capacity
165 lb
Includes Thread Guards
No
Replacement Wheel
Mfr. No. P-UP-035X013/050D-AM
Standards
RoHS, ICWM
Compatible with Series
Pegasus 12, Pegasus 12X
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Wheel Hardness Rating
55 Shore A

Description

Caster Wheel, 360 lb Load Rating, 300 to 999 lb Load Rating Range, 3 1/2 in Wheel Dia., 1 1/4 in Wheel Width, Polyurethane Wheel/Tread Material, Hard, 50-60 Shore D, Delrin, Standard Tread Shape, 1/2 in For Axle Size, Not Included Includes Spanner Bushing, Plastic Wheel Core Material, Yes Non-Marking, 1 7/16 in Hub Length
