  6. Plate Caster, 4" Wheel Dia., 264 lb. Load
Zoro Select Plate Caster, 4" Wheel Dia., 264 lb. Load 437V21 - main

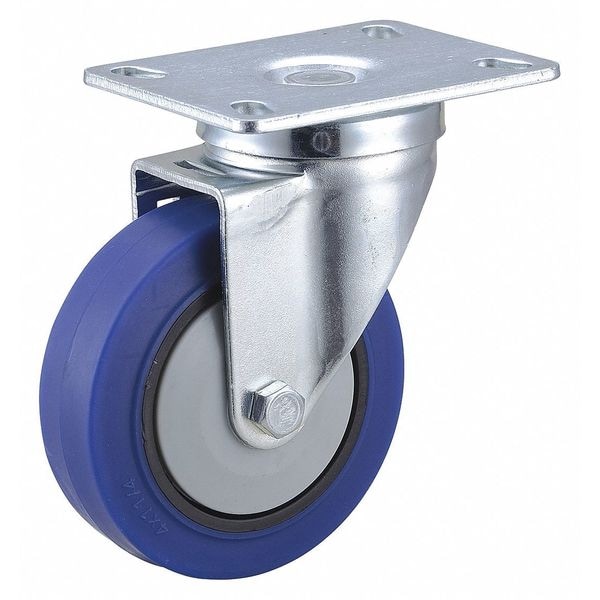

Plate Caster, 4" Wheel Dia., 264 lb. Load

  • Mfr # 437V21

  • Zoro # G4016700

product price:  $8.45
/ea

Key Features

Caster Sub-Type
Swivel
Wheel/Tread Material
Rubber
Mounting Height
5 3/16 in
Load Rating
260 lb
Wheel Bearing Type
Ball
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
437V21
Zoro #
G4016700
UPC #
-
Country of Origin
China

Dimensions

Mounting Height
5 3/16 in
Mounting Plate Size
3 1/8 in x 4 in
Mounting Plate Thickness
5/32in
Mounting Bolt Dia.
5/16 in
Wheel Dia.
4 in
Wheel Width
1 1/4 in
Overall Height
5-3/16in
Swivel Radius
3 3/8 in
Stem Dia.
No Stem

Details

Item
Plate Caster
Caster Sub-Type
Swivel
Wheel/Tread Material
Rubber
Load Rating
260 lb
Wheel Bearing Type
Ball
Wheel/Tread Color
Blue
Wheel Hardness Rating
75 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Black
Non-Marking
Yes
Number of Wheels
1
Inside Bolt Hole Spacing
1-3/4 in x 3 in
Caster Stem Type
No Stem/Plate Included
Frame Finish
Zinc Plated
Extended Lead
No
Application
General Purpose
Standards
ANSI, ANSI ICWM
Caster Plate Hole Pattern
A
Caster Brake Included
No
Caster Temp. Range Available
Yes
Outside Bolt Hole Spacing
2-3/8 in x 3-3/16 in
Thread Guards
Yes
Wheel Color
Blue
Caster Brake Type
No Brake
Swivel Lock Type
No Lock Included
Swivel Construction
Kingpin
Wheel Core Material
Polyolefin
Includes Thread Guards
Yes
Load Rating Range
0 to 299 lb
Swivel Raceway Type
Double Ball
Wheel/Tread Hardness Rating
Soft
Load Capacity - Maximum
260 lb
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
175 Degrees F
Operating Temperature Range
-40 Degrees to 175 Degrees F

Description

Swivel, Plate Caster, Load Rating 260 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
