  11. Caster Wheel, 15 7/8"dia, 3,300 lb, Black

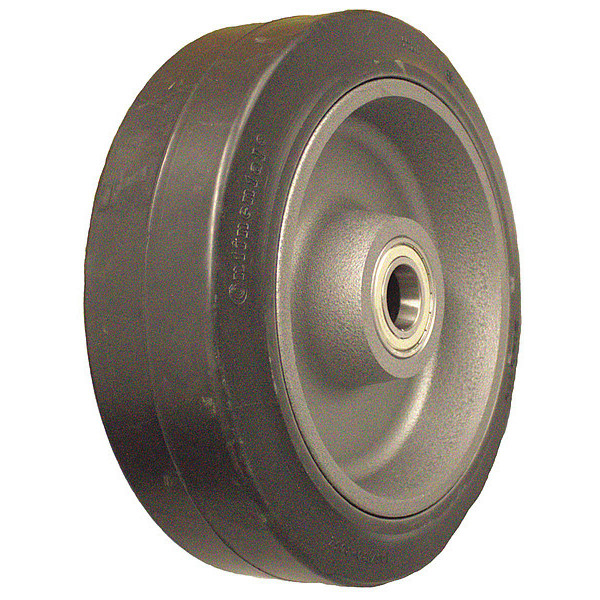

Zoro Select Caster Wheel, 15 7/8"dia, 3,300 lb, Black GEV 405/45K - main

Caster Wheel, 15 7/8"dia, 3,300 lb, Black

  • Mfr # GEV 405/45K

  • Zoro # G4240264

product price: $678.99
/ea
Free Shipping & Returns

Key Features

Caster Load Rating Range
Heavy Duty
Hub Length
5 1/8 in
Fits Axle Dia.
45 mm
Tread
Standard
Caster Wheel/Tread Material
Elastic Solid Rubber
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GEV 405/45K
Zoro #
G4240264
UPC #
-
Country of Origin
Germany

Dimensions

Hub Length
5 1/8 in
Fits Axle Dia.
45 mm
Wheel Dia.
405 mm
Wheel Width
130 mm
Bore Dia.
1-49/64"
For Axle Size
1 3/4 in
Hub Width
130 mm

Details

Item
Elastic Solid Rubber Tread On Cast Iron Hub Wheel
Caster Load Rating Range
Heavy Duty
Tread
Standard
Caster Wheel/Tread Material
Elastic Solid Rubber
Load Rating
3,300 lb
Non-Marking
No
Application
Retail, Industrial, Commercial
Tread Color
Black
Load Capacity
1500 kg
Features
Noise Reduction
Replacement Wheel
Mfr. No. GEV 405/45K
Caster Wheel Shape
Standard
Wheel Color
Black
Caster Core Material
Cast Iron
System of Measurement
Metric
Number of Wheels
1
Caster Temp. Range Available
Yes
Standards
RoHS, ICWM
Resistant To
Chemical Resistance To Many Aggressive Substances, Except Oils
Caster Wheel Bearings
Precision Ball
Includes
Grease Fitting
ESD Conductive
No
Durometer
65 Shore A
Core Color
Gray
Replacement For
LS Series
Caster Temp. Range
-25 Degrees To 80 Degrees C
Spanner Bushing
Included
includes Spanner Bushing
No
Wheel Core Material
Cast Iron
Tread Shape
Standard
Operating Temperature Range
-20 Degrees to 180 Degrees F
Wheel/Tread Material
Rubber
Wheel Bearing Type
Precision Ball
Wheel/Tread Hardness Rating
Soft
Wheel/Tread Hardness
65 Shore A
Wheel/Tread Color
Black
Includes Spanner Bushing
Not Included
Caster Product Group
Wheels
Extended Lead
No
Includes Thread Guards
No
Series
GEV Series
Operating Temperature - Minimum
-20 Degrees F
Wheel Hardness Rating
65 Shore A
Operating Temperature - Maximum
180 Degrees F
Compatible Manufacturer Model Number
608166

Description

Caster Wheel, 3,300 lb Load Rating, 3,000 to 5,999 lb Load Rating Range, 15 7/8 in Wheel Dia., 5 1/8 in Wheel Width, Rubber Wheel/Tread Material, Soft, 65 Shore A, Precision Ball, Standard Tread Shape, 1 3/4 in For Axle Size, Not Included Includes Spanner Bushing, Iron Wheel Core Material, No Non-Marking, 5 1/8 in Hub Length
