  11. Caster Wheel, 2645 lb. Ld Rating, Gy Wheel

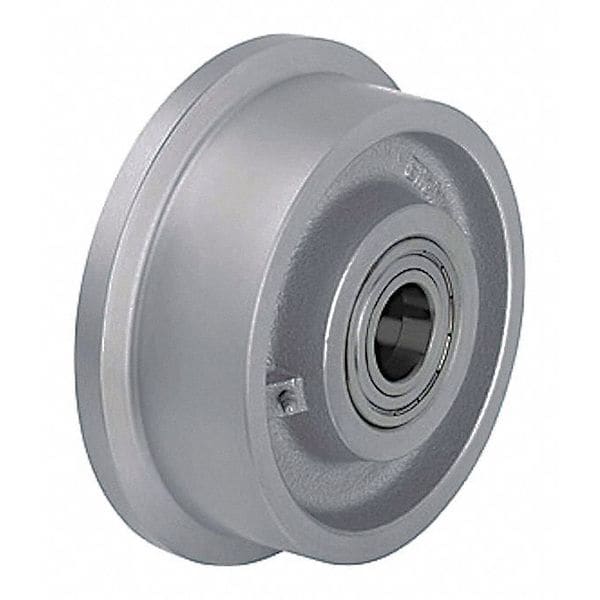

Zoro Select Caster Wheel, 2645 lb. Ld Rating, Gy Wheel SPK 180K - main

Caster Wheel, 2645 lb. Ld Rating, Gy Wheel

  • Mfr # SPK 180K

  • Zoro # G9463769

product price: $101.99
/ea
Free Shipping & Returns

Key Features

Wheel Dia.
7 in
Wheel Width
1-13/16 in
Fits Axle Dia.
20 mm
Caster Load Rating Range
Heavy Duty
Load Rating
2645 lb
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SPK 180K
Zoro #
G9463769
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
7 in
Wheel Width
1-13/16 in
Fits Axle Dia.
20 mm
Hub Length
2 in
Bore Dia.
25/32"
Groove Width
3/8 in
For Axle Size
3/4 in
Hub Width
2-1/32 in

Details

Caster Load Rating Range
Heavy Duty
Load Rating
2645 lb
Caster Core Material
Cast Iron
Caster Wheel/Tread Material
Cast Iron
Wheel Color
Gray
Caster Wheel Shape
Single Flange
Spanner Bushing
Included
Core Color
Gray
Non-Marking
No
Item
Single Flanged Wheel
Resistant To
High Chemical Resistance To Many Aggressive Substances
Caster Temp. Range
-150 Degrees To 1110 Degrees F
System of Measurement
Inch
Caster Wheel Bearings
Precision Ball
ESD Conductive
No
Durometer
180 to 220 BHN
Features
Railway Rail Compatible
Standards
RoHS, ICWM
Caster Temp. Range Available
Yes
includes Spanner Bushing
Not Included
Wheel Core Material
Cast Iron
Operating Temperature Range
-20 Degrees to 250 Degrees F
Tread Shape
Single Flange
Wheel/Tread Hardness
180-220 HB
Wheel Bearing Type
Precision Ball
Wheel/Tread Hardness Rating
Extra Hard
Wheel/Tread Material
Iron
Includes Spanner Bushing
No
Caster Product Group
Wheels
Number of Wheels
1
Tread Color
Gray
Includes Thread Guards
No
Application
Retail, Industrial, Commercial
Tread
Flanged
Load Capacity
2645 lb
Series
P-SPK Series
Extended Lead
No
Replacement Wheel
Mfr. No. SPK 180K
Wheel Hardness Rating
180 HB
Operating Temperature - Maximum
250 Degrees F
Operating Temperature - Minimum
-20 Degrees F
Load Capacity - Maximum
2,645 lb

Description

Track Wheel, 2645 lb Load Rating, 1000 to 2999 lb, 7 1/8 in Wheel Dia., 1 7/8 in Wheel Width, Iron Wheel/Tread Material, Extra Hard Wheel/Tread Hardness Rating, 190-230 BHN Wheel/Tread Hardness, Precision Ball Wheel Bearing Type, Single Flange Tread Shape, For Axle Size 3/4 in, 3/8 in Groove Width, No Includes Spanner Bushing, Iron Wheel Core Material, Yes Non-Marking, 2 in Hub Length
