Zoro Select CFL Ballast, Electronic, 41W, 120 to 277V (Formerly LumaPro) 16X959 - main

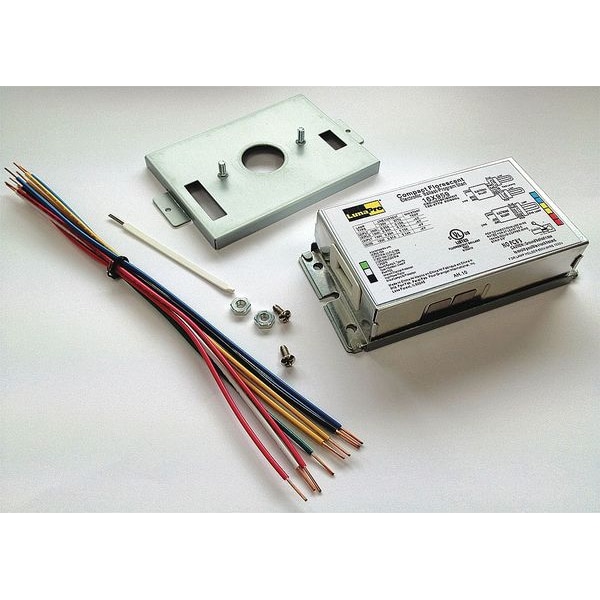

CFL Ballast, Electronic, 41W, 120 to 277V (Formerly LumaPro)

  • Mfr # 16X959

  • Zoro # G4598544

product price: $28.49
/ea

Key Features

Ballast Item
CFL Ballast
Ballast Type
Electronic
Ballast Lamp Type
Compact Fluorescent
Ballast Max. Lamp Watts
38
Ballast Voltage
120-277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
16X959
Zoro #
G4598544
UPC #
190735565520
Country of Origin
Taiwan, Province of China

Dimensions

Height
1 1/8 in
Width
2 1/2 in
Dimension Reference
D2
Length
5 in

Details

Ballast Item
CFL Ballast
Ballast Type
Electronic
Ballast Lamp Type
Compact Fluorescent
Ballast Max. Lamp Watts
38
Ballast Voltage
120-277
Ballast Max. Number of Lamps
2
Ballast Start Type
Programmed
Ballast Dimming
No
Ballast Dimming Type
No Dimming
Input Watts
40W
Min. Starting Temp.
-4 Degrees F
Light Output
Normal
Number of F13DBX Lamps
1 or 2
Power Factor
0.99
Ballast Family
LumaPro(R)
Base Type
4 Pin
Item
CFL Ballast
Ballast Lamp Watts
38
Number of F18DBX Lamps
1 or 2
Ballast Factor
1.1
Wiring Type
Series
Total Harmonic Distortion
10 %
Number of F162D Lamps
1 or 2
Number of F212D Lamps
1
Fixture Ballast Type
Electronic
Ballast Bulb Type
PL-C, PL-T, T5
Max. Bulb Watts
21 W
Max. Operating Temp.
194 Degrees F
Thermal Protection
Class P
Input Voltage
120 to 277V AC
CA Title 20 Compliant
No
Operating Amps @ 120V
0.33 A
Dimming Range
No Dimming
Frequency
50/60 Hz
Number of Bulbs Supported
1, 2
Dimming Method
No Dimming
Dimming Type
No Dimming
Brand and Series
LumaPro(R)
Starter Required
No
Dimming
No
Initial Lumens
Standard
Includes
Extending Wire Set, Mounting Plates with Studs, Nuts, Screws, Wire Extraction Tool
Voltage
120 to 277
Lamp Types Supported
(1 or 2) F13BX, (1 or 2) F13DBX, (1 or 2) F162D, (1 or 2) F18DBX
Bulb Base Type
4-Pin
Standards
UL935

Description

Formerly LumaPro.

LumaPro(R), Electronic, CFL Ballast, Ballast Start Type Programmed, Input Voltage 120 to 277V AC, Number of Bulbs Supported 1, 2, Max. Bulb Watts 21 W, Ballast Bulb Type PL-C, PL-T, T5, Dimming No, Dimming Type No Dimming, Dimming Method No Dimming, Dimming Range No Dimming, CA Title 20 Compliant No, Min. Starting Temp. -4 Degrees F
