  9. CFL Ballast, Electronic, 53W, 120 to 277V (Formerly LumaPro)

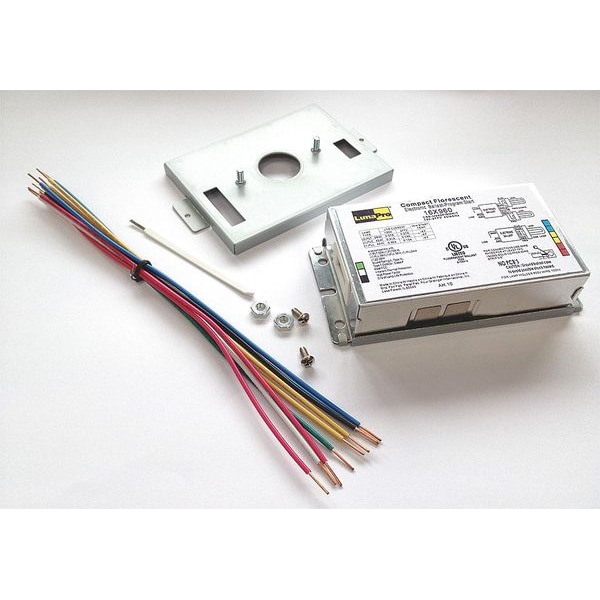

Zoro Select CFL Ballast, Electronic, 53W, 120 to 277V (Formerly LumaPro) 16X960 - main

CFL Ballast, Electronic, 53W, 120 to 277V (Formerly LumaPro)

  • Mfr # 16X960

  • Zoro # G4576302

product price: $32.39
/ea

Key Features

Ballast Item
CFL Ballast
Ballast Type
Electronic
Ballast Lamp Type
Compact Fluorescent
Ballast Max. Lamp Watts
42
Ballast Voltage
120-277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
16X960
Zoro #
G4576302
UPC #
190735565537
Country of Origin
Taiwan, Province of China

Dimensions

Length
5 in
Width
2 1/2 in
Dimension Reference
D2
Height
1 1/8 in

Details

Ballast Item
CFL Ballast
Ballast Type
Electronic
Ballast Lamp Type
Compact Fluorescent
Ballast Max. Lamp Watts
42
Ballast Voltage
120-277
Ballast Max. Number of Lamps
2
Ballast Start Type
Rapid
Ballast Dimming
No
Ballast Dimming Type
No Dimming
Input Watts
53W
Ballast Factor
0.86
Number of F26DBX Lamps
1 or 2
Item
CFL Ballast
Light Output
Normal
Power Factor
0.9
Base Type
4 Pin
Min. Starting Temp.
-4 Degrees F
Number of F39BX Lamps
1
Number of F40BX Lamps
1
Ballast Lamp Watts
42
Wiring Type
Series
Ballast Family
LumaPro(R)
Total Harmonic Distortion
10 %
Number of F282D/4P Lamps
1
Number of F282D Lamps
1
Fixture Ballast Type
Electronic
Ballast Bulb Type
BX, PL-C, PL-L, PL-T
Thermal Protection
Class P
Number of Bulbs Supported
1, 2
Input Voltage
120 to 277V AC
Dimming Range
No Dimming
Dimming Type
No Dimming
Operating Amps @ 120V
0.57 A
Max. Bulb Watts
28 W, 39 W, 40 W
Brand and Series
LumaPro(R)
CA Title 20 Compliant
No
Starter Required
No
Dimming Method
No Dimming
Max. Operating Temp.
194 Degrees F
Frequency
50/60 Hz
Dimming
No
Initial Lumens
Standard
Bulb Base Type
4-Pin
Includes
Extending Wire Set, Mounting Plates with Studs, Nuts, Screws, Wire Extraction Tool
Standards
UL935
Voltage
120 to 277
Lamp Types Supported
(1 or 2) F24BX, (1 or 2) F26DBX, (1 or 2) F27BX, (1) F32DBX, (1) F40BX, (1) F42DBX, (2) F212D

Description

Formerly LumaPro.

LumaPro(R), Electronic, CFL Ballast, Ballast Start Type Rapid, Input Voltage 120 to 277V AC, Number of Bulbs Supported 1, 2, Max. Bulb Watts 28 W, 39 W, 40 W, Ballast Bulb Type BX, PL-C, PL-L, PL-T, Dimming No, Dimming Type No Dimming, Dimming Method No Dimming, Dimming Range No Dimming, CA Title 20 Compliant No, Min. Starting Temp. -4 Degrees F

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
