  9. CFL Ballast, Electronic, 88W, 120 to 277V (Formerly LumaPro)
Zoro Select CFL Ballast, Electronic, 88W, 120 to 277V (Formerly LumaPro) 16X961 - main

CFL Ballast, Electronic, 88W, 120 to 277V (Formerly LumaPro)

  • Mfr # 16X961

  • Zoro # G4611065

product price: $32.19
/ea

Key Features

Ballast Item
CFL Ballast
Ballast Type
Electronic
Ballast Lamp Type
Compact Fluorescent
Ballast Voltage
120-277
Ballast Max. Number of Lamps
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
16X961
Zoro #
G4611065
UPC #
190735565544
Country of Origin
Taiwan, Province of China

Dimensions

Width
3 in
Height
1 3/8 in
Length
5 in
Dimension Reference
D3

Details

Ballast Item
CFL Ballast
Ballast Type
Electronic
Ballast Lamp Type
Compact Fluorescent
Ballast Voltage
120-277
Ballast Max. Number of Lamps
2
Ballast Start Type
Rapid
Ballast Dimming
No
Ballast Dimming Type
No Dimming
Input Watts
88W
Number of F50BX Lamps
1
Number of F39BX Lamps
1 or 2
Power Factor
0.96
Light Output
Normal
Number of F26DBX Lamps
2
Number of F40BX Lamps
1 or 2
Item
CFL Ballast
Wiring Type
Series
Number of F55BX Lamps
1
Base Type
4 Pin
Ballast Family
LumaPro(R)
Ballast Factor
0.92
Min. Starting Temp.
-4 Degrees F
Number of F282D/4P Lamps
2
Number of F382D/4P Lamps
2
Total Harmonic Distortion
10 %
Fixture Ballast Type
Electronic
Ballast Bulb Type
BX, T5-Circuline, DBX, PL-L, PL-T
Dimming Type
No Dimming
CA Title 20 Compliant
No
Input Voltage
120 to 277V AC
Number of Bulbs Supported
1, 2
Dimming Range
No Dimming
Operating Amps @ 120V
0.807 A
Starter Required
No
Thermal Protection
Class P
Frequency
50/60 Hz
Dimming Method
No Dimming
Max. Bulb Watts
26 W, 28 W, 38 W, 50 W, 55 W
Brand and Series
LumaPro(R)
Max. Operating Temp.
194 Degrees F
Dimming
No
Standards
UL935
Includes

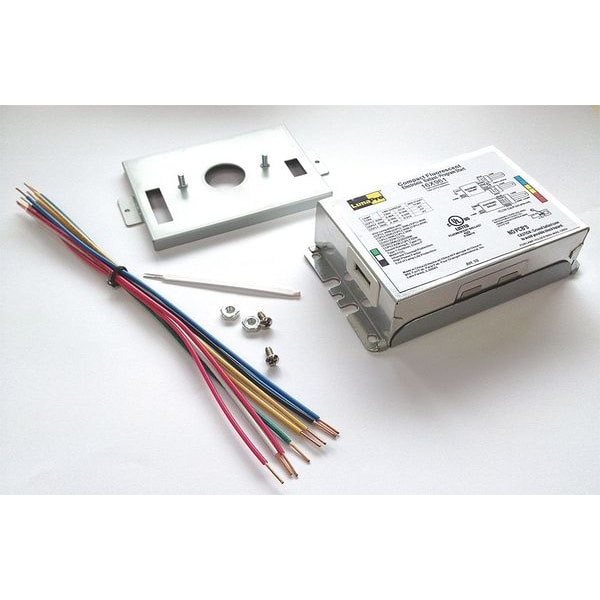

Extending Wire Set, Mounting Plates with Studs, Nuts, Screws, Wire Extraction Tool
Voltage
120 to 277
Initial Lumens
Standard
Lamp Types Supported
(1 or 2) F26DBX, (1 or 2) F32DBX, (1 or 2) F36BX, (1 or 2) F39BX, (1 or 2) F40BX, (1 or 2) F42DBX, (1) F50BX, (1) F55BX, (1) F57DBX, (2) F27BX, (2) F282D, (2) F382D
Bulb Base Type
4-Pin

Description

Formerly LumaPro.

LumaPro(R), Electronic, CFL Ballast, Ballast Start Type Rapid, Input Voltage 120 to 277V AC, Number of Bulbs Supported 1, 2, Max. Bulb Watts 26 W, 28 W, 38 W, 50 W, 55 W, Ballast Bulb Type BX, T5-Circuline, DBX, PL-L, PL-T, Dimming No, Dimming Type No Dimming, Dimming Method No Dimming, Dimming Range No Dimming, CA Title 20 Compliant No, Min. Starting Temp. -4 Degrees F
