  5. Commercial Compound Gauge, 30 to 0 to 30 psi, 3 1/2 in Dial, 1/4 in NPT, Center Back Location

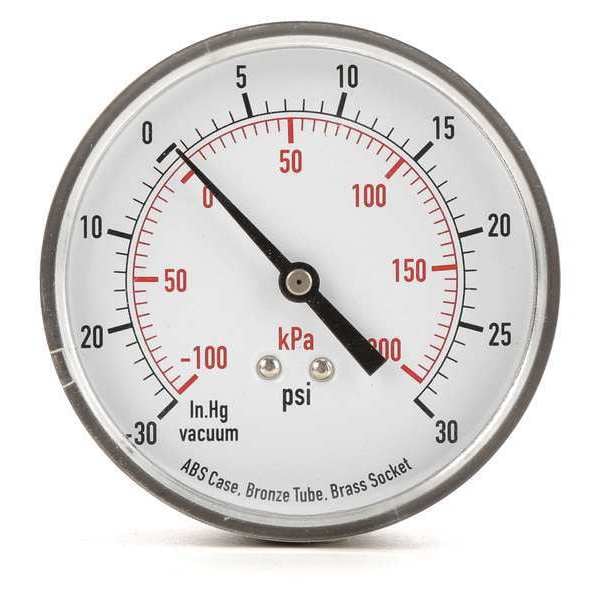

Zoro Select Commercial Compound Gauge, 30 to 0 to 30 psi, 3 1/2 in Dial, 1/4 in NPT, Center Back Location 4FMF9 - main

Commercial Compound Gauge, 30 to 0 to 30 psi, 3 1/2 in Dial, 1/4 in NPT, Center Back Location

  • Mfr # 4FMF9

  • Zoro # G0039733

product price:  $9.29
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Center Back
Process Connection Size
1/4 in
Process Connection Type
NPT
Application
Test and Measurement
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
4FMF9
Zoro #
G0039733
UPC #
190735508077
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
3 1/2 in
Nominal Dial Size
3 1/2 in
Nominal Dial Diameter
3 1/2 in

Details

Item
Commercial Compound Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Center Back
Process Connection Type
NPT
Application
Test and Measurement
Gauge Case Material
ABS Plastic
Lens Material
Acrylic
Primary Pressure Range
30 to 0 to 30
Primary Scale Units
in Hg/psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Case Color
Black
Gauge Application
General-Purpose Case
Smallest Graduation
1 psi, 2 in Hg
For Use With
Air and Noncorrosive Fluids Such as Water and Oil in Pumps, Filters, Compressors, and Regulators
Gauge Secondary Range Values
-100 to 0 to 200
Gauge Primary Range Smallest Graduation
2/1
Calibration Certificate Included
No
Case Material
ABS Plastic
Socket Material
Brass
Connection Type
MNPT
Wetted Materials
Brass / Bronze
Cleaned for Oxygen Service
No
Freeze Resistant Movement
No
Secondary Pressure Range
-100 to 0 to 200
Includes Vent Plug
No
Non-Sparking
No
Dial Color
White
Bezel Material
Crimped Stainless Steel
Scale Type
Dual
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F
Primary Scale Minor Graduations
1, 2
Removable Bezel
No
Includes Calibration Certificate
No
Process Connection Gender
Male
Vibration Resistance
None
Field Fillable
No
Secondary Scale Units
kPa
Pressure Gauge Type
Commercial Pressure Gauge
Sensor Material
Bronze
Dry Dampening Feature
None
Accuracy Scale
Mid-Scale
Includes Mounting Hardware
No
Gauge Case Liquid
None
Pressure Range Type
Compound
Maximum Pressure
30
Operating Temperature Range
-40 Degrees to 150 Degrees F
Operating Temperature - Maximum
150 Degrees F
Secondary Scale Pressure Measurement - Minimum
0 kPa
Secondary Scale Pressure Measurement - Maximum
200 kPa
Secondary Scale Vacuum Measurement - Minimum
-100 kPa
Secondary Scale Vacuum Measurement - Maximum
0 kPa
Operating Temperature - Minimum
-40 Degrees F
Primary Scale Pressure Measurement - Maximum
30 psi
Primary Scale Vacuum Measurement - Maximum
30 in Hg
Primary Scale Pressure Measurement - Minimum
0 psi
Primary Scale Vacuum Measurement - Minimum
0 in Hg
Case Liquid
None

Description

Commercial Compound Gauge, Nominal Dial Size 3 1/2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material ABS Plastic, Process Connection Type NPT, Process Connection Gender Male, Lens Material Acrylic, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Center Back, Case Color Black, IP/NEMA Rating Not Rated, Primary Pressure Range 30 to 0 to 30, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Commercial Pressure Gauge

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
