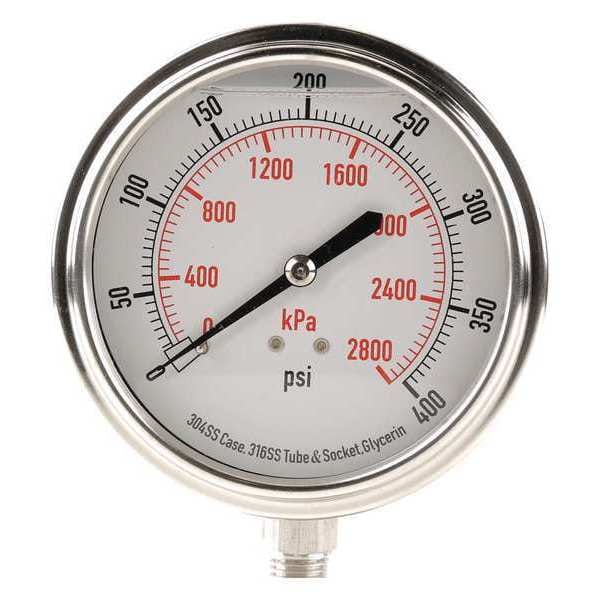

Commercial Pressure Gauge, 0 to 400 psi, 3 1/2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # 4CFK4

  • Zoro # G0042271

product price:  $22.89
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Application
General Purpose
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
4CFK4
Zoro #
G0042271
UPC #
190735502129
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
3 1/2 in
Nominal Dial Size
3 1/2 in
Nominal Dial Diameter
3 1/2 in

Details

Item
Commercial Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
General Purpose
Gauge Case Material
304 Stainless Steel
Lens Material
Acrylic
Primary Pressure Range
0 to 400
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
Yes
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Smallest Graduation
5 psi
Case Color
Silver
Gauge Primary Range Smallest Graduation
5
Gauge Application
Corrosion-Resistant Case
Gauge Secondary Range Values
0 to 2800
Gauge Filled With
Glycerin
Calibration Certificate Included
No
Case Material
304 Stainless Steel
Socket Material
316 Stainless Steel
Wetted Materials
Stainless Steel
Connection Type
MNPT
Sensor Material
316 Stainless Steel
Bezel Material
Crimped Stainless Steel
Gauge Case Liquid
Glycerin
Process Connection Gender
Male
Pressure Gauge Type
Commercial Pressure Gauge
Primary Scale Minor Graduations
1, 2
Includes Calibration Certificate
No
Freeze Resistant Movement
No
Dry Dampening Feature
None
Ambient Operating Temperature Range
-40 Degrees to 140 Degrees F
Dial Color
White
Non-Sparking
No
Field Fillable
No
Includes Mounting Hardware
No
Includes Vent Plug
Yes
Secondary Pressure Range
0 to 2,800 kPa
Secondary Scale Units
kPa
Vibration Resistance
Liquid-Filled
Scale Type
Dual
Removable Bezel
No
Accuracy Scale
Mid-Scale
Pressure Range Type
Pressure
Cleaned for Oxygen Service
No
Maximum Pressure
400
Operating Temperature Range
-40 Degrees to 140 Degrees F
Primary Scale Pressure Measurement - Maximum
400 psi
Operating Temperature - Minimum
-40 Degrees F
Secondary Scale Pressure Measurement - Maximum
2,800 kPa
Primary Scale Pressure Measurement - Minimum
0 psi
Case Liquid
Glycerin
Secondary Scale Pressure Measurement - Minimum
0 kPa
Operating Temperature - Maximum
140 Degrees F

Description

Commercial Pressure Gauge, Nominal Dial Size 3 1/2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material 304 Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Acrylic, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Silver, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 400, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White, Pressure Gauge Type Commercial Pressure Gauge
