  5. Commercial Pressure Gauge, 0 to 3,000 psi, 3 1/2 in Dial, 1/4 in NPT, Bottom Location

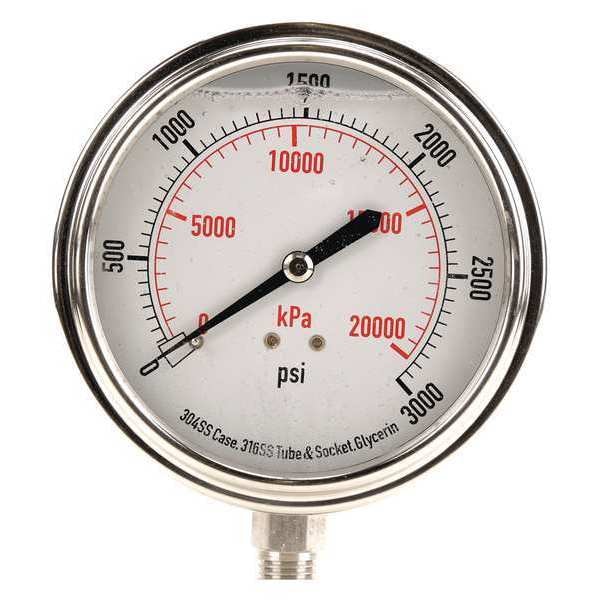

Zoro Select Commercial Pressure Gauge, 0 to 3,000 psi, 3 1/2 in Dial, 1/4 in NPT, Bottom Location 4CFK8 - main

Commercial Pressure Gauge, 0 to 3,000 psi, 3 1/2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # 4CFK8

  • Zoro # G0042314

product price:  $31.65
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Application
General Purpose
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4CFK8
Zoro #
G0042314
UPC #
190735502167
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
3 1/2 in
Nominal Dial Size
3 1/2 in
Nominal Dial Diameter
3 1/2 in

Details

Item
Commercial Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
General Purpose
Gauge Case Material
304 Stainless Steel
Lens Material
Acrylic
Primary Pressure Range
0 to 3,000
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
Yes
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Gauge Filled With
Glycerin
Case Color
Silver
Gauge Application
Corrosion-Resistant Case
Gauge Primary Range Smallest Graduation
50
Smallest Graduation
50 psi
Calibration Certificate Included
No
Gauge Secondary Range Values
0 to 20,000
Socket Material
316 Stainless Steel
Case Material
304 Stainless Steel
Connection Type
MNPT
Wetted Materials
Stainless Steel
Dry Dampening Feature
None
Non-Sparking
No
Scale Type
Dual
Includes Mounting Hardware
No
Field Fillable
No
Freeze Resistant Movement
No
Pressure Range Type
Pressure
Removable Bezel
No
Includes Vent Plug
No
Sensor Material
316 Stainless Steel
Process Connection Gender
Male
Pressure Gauge Type
Commercial Pressure Gauge
Gauge Case Liquid
Glycerin
Ambient Operating Temperature Range
-40 Degrees to 140 Degrees F
Secondary Scale Units
kPa
Cleaned for Oxygen Service
No
Primary Scale Minor Graduations
1, 2
Bezel Material
Crimped Stainless Steel
Accuracy Scale
Mid-Scale
Includes Calibration Certificate
No
Vibration Resistance
Liquid-Filled
Dial Color
White
Secondary Pressure Range
0 to 20,000 kPa
Maximum Pressure
3000
Operating Temperature Range
-40 Degrees to 140 Degrees F
Primary Scale Pressure Measurement - Maximum
3,000 psi
Primary Scale Pressure Measurement - Minimum
0 psi
Operating Temperature - Maximum
140 Degrees F
Secondary Scale Pressure Measurement - Minimum
0 kPa
Secondary Scale Pressure Measurement - Maximum
20,000 kPa
Case Liquid
Glycerin
Operating Temperature - Minimum
-40 Degrees F

Description

Commercial Pressure Gauge, Nominal Dial Size 3 1/2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material 304 Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Acrylic, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Silver, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 3,000, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White
