Zoro Select Commercial Pressure Gauge, 0 to 30 psi, 2 in Dial, 1/4 in NPT, Bottom Location 4FMK5 - main

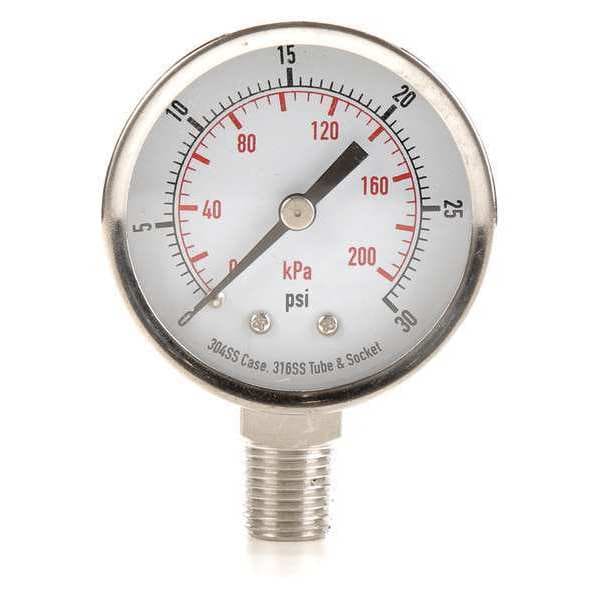

Commercial Pressure Gauge, 0 to 30 psi, 2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # 4FMK5

  • Zoro # G0040817

product price:  $15.99
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Application
Test and Measurement
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4FMK5
Zoro #
G0040817
UPC #
190735508398
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 in
Nominal Dial Size
2 in
Nominal Dial Diameter
2 in

Details

Item
Commercial Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Test and Measurement
Gauge Case Material
304 Stainless Steel
Lens Material
Acrylic
Primary Pressure Range
0 to 30
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Calibration Certificate Included
No
Gauge Secondary Range Values
0 to 200
Gauge Primary Range Smallest Graduation
0.5
Smallest Graduation
0.5 psi
Gauge Application
Corrosion-Resistant Case
Case Color
Silver
Case Material
304 Stainless Steel
Socket Material
316 Stainless Steel
Wetted Materials
Stainless Steel
Connection Type
MNPT
Secondary Pressure Range
0 to 200
Pressure Gauge Type
Commercial Pressure Gauge
Cleaned for Oxygen Service
No
Process Connection Gender
Male
Includes Calibration Certificate
No
Removable Bezel
No
Gauge Case Liquid
None
Includes Mounting Hardware
No
Includes Vent Plug
No
Vibration Resistance
None
Freeze Resistant Movement
No
Bezel Material
Crimped Stainless Steel
Scale Type
Dual
Secondary Scale Units
kPa
Non-Sparking
No
Sensor Material
316 Stainless Steel
Pressure Range Type
Pressure
Field Fillable
No
Dry Dampening Feature
None
Accuracy Scale
Mid-Scale
Primary Scale Minor Graduations
0.5
Dial Color
White
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F
Maximum Pressure
30
Operating Temperature Range
-40 Degrees to 150 Degrees F
Primary Scale Pressure Measurement - Maximum
30 psi
Case Liquid
None
Primary Scale Pressure Measurement - Minimum
0 psi
Operating Temperature - Minimum
-40 Degrees F
Secondary Scale Pressure Measurement - Maximum
200 kPa
Operating Temperature - Maximum
150 Degrees F
Secondary Scale Pressure Measurement - Minimum
0 kPa

Description

Commercial Pressure Gauge, Nominal Dial Size 2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material 304 Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Acrylic, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Silver, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 30, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Commercial Pressure Gauge
