  5. Commercial Pressure Gauge, 0 to 300 psi, 2 in Dial, 1/4 in NPT, Center Back Location
Zoro Select Commercial Pressure Gauge, 0 to 300 psi, 2 in Dial, 1/4 in NPT, Center Back Location 4CFP4 - main

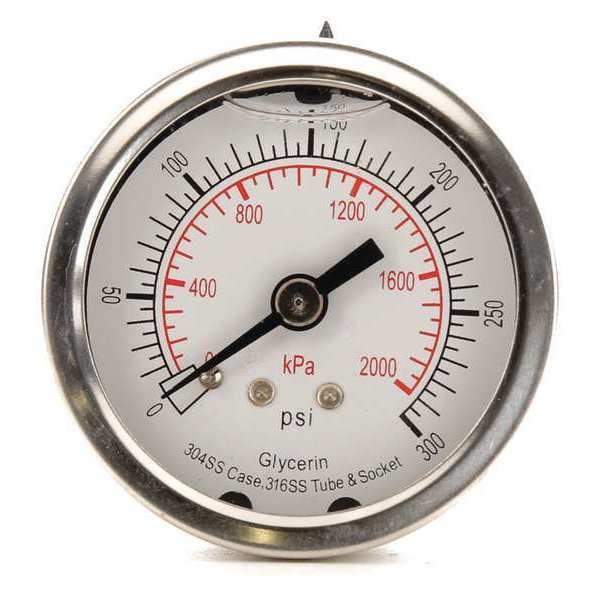

Commercial Pressure Gauge, 0 to 300 psi, 2 in Dial, 1/4 in NPT, Center Back Location

  • Mfr # 4CFP4

  • Zoro # G0041282

product price:  $22.19
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Center Back
Process Connection Size
1/4 in
Process Connection Type
NPT
Application
General Purpose
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
4CFP4
Zoro #
G0041282
UPC #
190735502396
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 in
Nominal Dial Size
2 in
Nominal Dial Diameter
2 in

Details

Item
Commercial Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Center Back
Process Connection Type
NPT
Application
General Purpose
Gauge Case Material
304 Stainless Steel
Lens Material
Acrylic
Primary Pressure Range
0 to 300
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
Yes
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Case Color
Silver
Gauge Application
Corrosion-Resistant Case
Smallest Graduation
5 psi
Gauge Secondary Range Values
0 to 2000
Calibration Certificate Included
No
Gauge Primary Range Smallest Graduation
5
Gauge Filled With
Glycerin
For Use With
Air, Water, and Oils in Hydraulic Equipment, Pressure Washers, Pumps, and Compressors
Socket Material
316 Stainless Steel
Case Material
304 Stainless Steel
Wetted Materials
Stainless Steel
Connection Type
MNPT
Secondary Pressure Range
0 to 2,000 kPa
Pressure Gauge Type
Commercial Pressure Gauge
Removable Bezel
No
Gauge Case Liquid
Glycerin
Includes Vent Plug
No
Includes Mounting Hardware
No
Dial Color
White
Dry Dampening Feature
None
Field Fillable
No
Secondary Scale Units
kPa
Sensor Material
316 Stainless Steel
Vibration Resistance
Liquid-Filled
Scale Type
Dual
Process Connection Gender
Male
Pressure Range Type
Pressure
Primary Scale Minor Graduations
1, 2
Accuracy Scale
Mid-Scale
Freeze Resistant Movement
No
Non-Sparking
No
Ambient Operating Temperature Range
-40 Degrees to 140 Degrees F
Cleaned for Oxygen Service
No
Includes Calibration Certificate
No
Bezel Material
Crimped Stainless Steel
Maximum Pressure
300
Operating Temperature Range
-40 Degrees to 140 Degrees F
Secondary Scale Pressure Measurement - Maximum
2,000 kPa
Secondary Scale Pressure Measurement - Minimum
0 kPa
Case Liquid
Glycerin
Primary Scale Pressure Measurement - Minimum
0 psi
Operating Temperature - Maximum
140 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Primary Scale Pressure Measurement - Maximum
300 psi

Description

Commercial Pressure Gauge, Nominal Dial Size 2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material 304 Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Acrylic, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Center Back, Case Color Silver, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 300, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White, Pressure Gauge Type Commercial Pressure Gauge
