  5. Commercial Pressure Gauge, 0 to 300 psi, 3 1/2 in Dial, 1/4 in NPT, Center Back Location

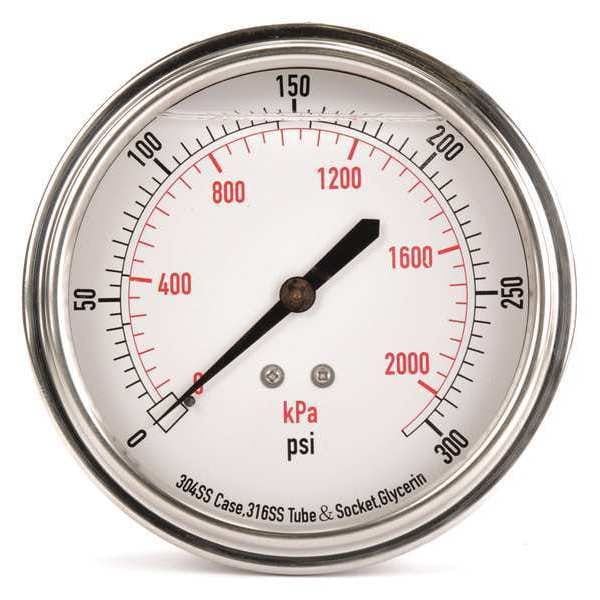

Zoro Select Commercial Pressure Gauge, 0 to 300 psi, 3 1/2 in Dial, 1/4 in NPT, Center Back Location 4CFV5 - main

Commercial Pressure Gauge, 0 to 300 psi, 3 1/2 in Dial, 1/4 in NPT, Center Back Location

  • Mfr # 4CFV5

  • Zoro # G0045884

product price:  $25.15
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Center Back
Process Connection Size
1/4 in
Process Connection Type
NPT
Application
General Purpose
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
4CFV5
Zoro #
G0045884
UPC #
190735502679
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
3 1/2 in
Nominal Dial Size
3 1/2 in
Nominal Dial Diameter
3 1/2 in

Details

Item
Commercial Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Center Back
Process Connection Type
NPT
Application
General Purpose
Gauge Case Material
304 Stainless Steel
Lens Material
Acrylic
Primary Pressure Range
0 to 300
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
Yes
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Gauge Application
Corrosion-Resistant Case
Gauge Filled With
Glycerin
Gauge Primary Range Smallest Graduation
5
Calibration Certificate Included
No
Smallest Graduation
5 psi
For Use With
Air, Water, and Oils in Hydraulic Equipment, Pressure Washers, Pumps, and Compressors
Gauge Secondary Range Values
0 to 2000
Case Color
Silver
Socket Material
316 Stainless Steel
Case Material
304 Stainless Steel
Wetted Materials
Stainless Steel
Connection Type
MNPT
Ambient Operating Temperature Range
-40 Degrees to 140 Degrees F
Pressure Range Type
Pressure
Non-Sparking
No
Process Connection Gender
Male
Gauge Case Liquid
Glycerin
Accuracy Scale
Mid-Scale
Dry Dampening Feature
None
Scale Type
Dual
Dial Color
White
Cleaned for Oxygen Service
No
Removable Bezel
No
Vibration Resistance
Liquid-Filled
Includes Calibration Certificate
No
Includes Vent Plug
No
Includes Mounting Hardware
No
Sensor Material
316 Stainless Steel
Secondary Scale Units
kPa
Field Fillable
No
Primary Scale Minor Graduations
1, 2
Secondary Pressure Range
0 to 2,000 kPa
Pressure Gauge Type
Commercial Pressure Gauge
Freeze Resistant Movement
No
Bezel Material
Crimped Stainless Steel
Maximum Pressure
300
Operating Temperature Range
-40 Degrees to 140 Degrees F
Secondary Scale Pressure Measurement - Maximum
2,000 kPa
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
140 Degrees F
Case Liquid
Glycerin
Secondary Scale Pressure Measurement - Minimum
0 kPa
Primary Scale Pressure Measurement - Minimum
0 psi
Primary Scale Pressure Measurement - Maximum
300 psi

Description

Commercial Pressure Gauge, Nominal Dial Size 3 1/2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material 304 Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Acrylic, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Center Back, Case Color Silver, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 300, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White
