Shop ZORO SELECT

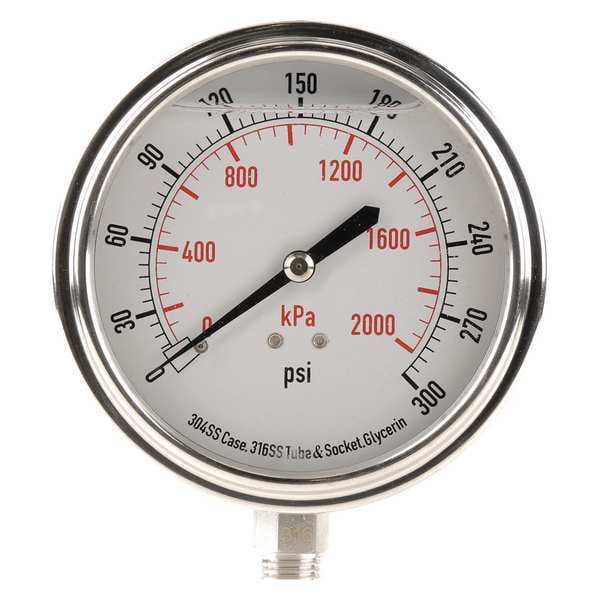

Commercial Pressure Gauge, 0 to 300 psi, 3 1/2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # 4CFK3

  • Zoro # G0042262

product price:
$
31.59
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Application
General Purpose
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
4CFK3
Zoro #
G0042262
UPC #
190735502112
Country of Origin
China
Item
Commercial Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
General Purpose
Gauge Case Material
304 Stainless Steel
Lens Material
Acrylic
Primary Pressure Range
0 to 300
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
Yes
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Gauge Secondary Range Values
0 to 2000
Gauge Primary Range Smallest Graduation
5
Gauge Application
Corrosion-Resistant Case
Case Color
Silver
Calibration Certificate Included
No
Gauge Filled With
Glycerin
Smallest Graduation
5 psi
Case Material
304 Stainless Steel
Socket Material
316 Stainless Steel
Wetted Materials
Stainless Steel
Connection Type
MNPT
Gauge Case Liquid
Glycerin
Non-Sparking
No
Pressure Range Type
Pressure
Scale Type
Dual
Cleaned for Oxygen Service
No
Bezel Material
Crimped Stainless Steel
Primary Scale Minor Graduations
1, 2
Dry Dampening Feature
None
Accuracy Scale
Mid-Scale
Sensor Material
316 Stainless Steel
Field Fillable
No
Pressure Gauge Type
Commercial Pressure Gauge
Secondary Scale Units
kPa
Ambient Operating Temperature Range
-40 Degrees to 140 Degrees F
Secondary Pressure Range
0 to 2,000 kPa
Vibration Resistance
Liquid-Filled
Process Connection Gender
Male
Freeze Resistant Movement
No
Dial Color
White
Removable Bezel
No
Includes Mounting Hardware
No
Includes Vent Plug
Yes
Includes Calibration Certificate
No
Maximum Pressure
300
Operating Temperature Range
-40 Degrees to 140 Degrees F
Case Liquid
Glycerin
Secondary Scale Pressure Measurement - Minimum
0 kPa
Operating Temperature - Minimum
-40 Degrees F
Secondary Scale Pressure Measurement - Maximum
2,000 kPa
Primary Scale Pressure Measurement - Maximum
300 psi
Primary Scale Pressure Measurement - Minimum
0 psi
Operating Temperature - Maximum
140 Degrees F

Description

Commercial Pressure Gauge, Nominal Dial Size 3 1/2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material 304 Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Acrylic, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Silver, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 300, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White, Pressure Gauge Type Commercial Pressure Gauge
