  5. Commercial Pressure Gauge, 0 to 400 psi, 3 1/2 in Dial, 1/4 in NPT, Bottom Location
Zoro Select Commercial Pressure Gauge, 0 to 400 psi, 3 1/2 in Dial, 1/4 in NPT, Bottom Location 4FLY3 - main

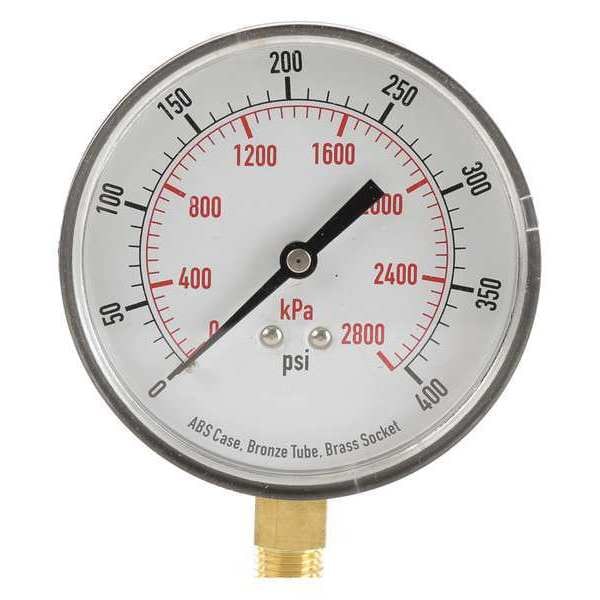

Commercial Pressure Gauge, 0 to 400 psi, 3 1/2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # 4FLY3

  • Zoro # G0039645

product price:  $7.29
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Application
Test and Measurement
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
4FLY3
Zoro #
G0039645
UPC #
190735507476
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
3 1/2 in
Nominal Dial Size
3 1/2 in
Nominal Dial Diameter
3 1/2 in

Details

Item
Commercial Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Test and Measurement
Gauge Case Material
ABS Plastic
Lens Material
Acrylic
Primary Pressure Range
0 to 400
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Gauge Application
General-Purpose Case
Calibration Certificate Included
No
Gauge Secondary Range Values
0 to 2800
For Use With
Air and Noncorrosive Fluids Such as Water and Oil in Pumps, Filters, Compressors, and Regulators
Gauge Primary Range Smallest Graduation
10
Case Color
Black
Smallest Graduation
10 psi
Case Material
ABS Plastic
Socket Material
Brass
Wetted Materials
Brass / Bronze
Connection Type
MNPT
Freeze Resistant Movement
No
Pressure Gauge Type
Commercial Pressure Gauge
Field Fillable
No
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F
Includes Vent Plug
No
Dial Color
White
Cleaned for Oxygen Service
No
Pressure Range Type
Pressure
Removable Bezel
No
Sensor Material
Bronze
Secondary Pressure Range
0 to 2,800
Dry Dampening Feature
None
Primary Scale Minor Graduations
10
Gauge Case Liquid
None
Bezel Material
Crimped Stainless Steel
Scale Type
Dual
Vibration Resistance
None
Includes Calibration Certificate
No
Accuracy Scale
Mid-Scale
Secondary Scale Units
kPa
Process Connection Gender
Male
Non-Sparking
No
Includes Mounting Hardware
No
Maximum Pressure
400
Operating Temperature Range
-40 Degrees to 150 Degrees F
Case Liquid
None
Primary Scale Pressure Measurement - Minimum
0 psi
Primary Scale Pressure Measurement - Maximum
400 psi
Operating Temperature - Maximum
150 Degrees F
Secondary Scale Pressure Measurement - Maximum
2,800 kPa
Secondary Scale Pressure Measurement - Minimum
0 kPa
Operating Temperature - Minimum
-40 Degrees F

Description

Commercial Pressure Gauge, Nominal Dial Size 3 1/2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material ABS Plastic, Process Connection Type NPT, Process Connection Gender Male, Lens Material Acrylic, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Black, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 400, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Commercial Pressure Gauge
