  5. Commercial Pressure Gauge, 0 to 60 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location
Zoro Select Commercial Pressure Gauge, 0 to 60 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location 4CFH3 - main
Shop ZORO SELECT

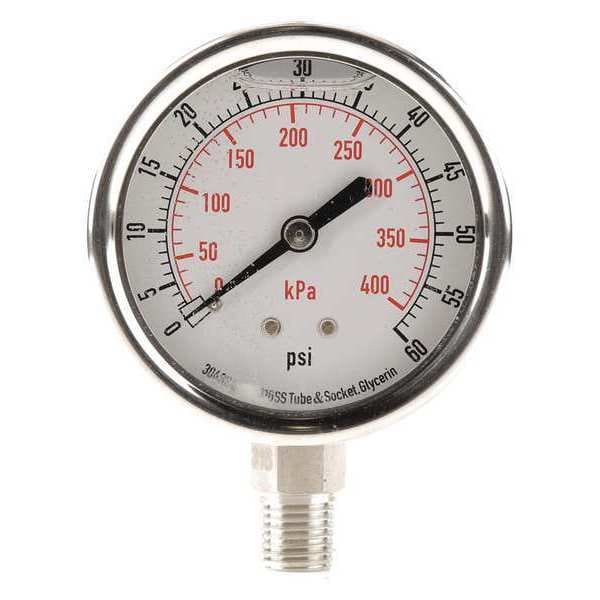

Commercial Pressure Gauge, 0 to 60 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # 4CFH3

  • Zoro # G0041666

product price:  $28.49
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Application
General Purpose
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
4CFH3
Zoro #
G0041666
UPC #
190735501931
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 1/2 in
Nominal Dial Size
2 1/2 in
Nominal Dial Diameter
2 1/2 in

Details

Item
Commercial Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
General Purpose
Gauge Case Material
304 Stainless Steel
Lens Material
Acrylic
Primary Pressure Range
0 to 60
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
Yes
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Smallest Graduation
1 psi
Gauge Primary Range Smallest Graduation
1
Gauge Secondary Range Values
0 to 400
Calibration Certificate Included
No
For Use With
Air, Water, and Oils in Hydraulic Equipment, Pressure Washers, Pumps, and Compressors
Gauge Filled With
Glycerin
Gauge Application
Corrosion-Resistant Case
Case Color
Silver
Case Material
304 Stainless Steel
Socket Material
316 Stainless Steel
Connection Type
MNPT
Wetted Materials
Stainless Steel
Primary Scale Minor Graduations
1, 2
Dial Color
White
Secondary Scale Units
kPa
Ambient Operating Temperature Range
-40 Degrees to 140 Degrees F
Vibration Resistance
Liquid-Filled
Field Fillable
No
Dry Dampening Feature
None
Includes Vent Plug
No
Process Connection Gender
Male
Pressure Range Type
Pressure
Includes Calibration Certificate
No
Pressure Gauge Type
Commercial Pressure Gauge
Sensor Material
316 Stainless Steel
Gauge Case Liquid
Glycerin
Freeze Resistant Movement
No
Accuracy Scale
Mid-Scale
Scale Type
Dual
Cleaned for Oxygen Service
No
Secondary Pressure Range
0 to 400 kPa
Bezel Material
Crimped Stainless Steel
Removable Bezel
No
Includes Mounting Hardware
No
Non-Sparking
No
Maximum Pressure
60
Operating Temperature Range
-40 Degrees to 140 Degrees F
Primary Scale Pressure Measurement - Maximum
60 psi
Secondary Scale Pressure Measurement - Minimum
0 kPa
Primary Scale Pressure Measurement - Minimum
0 psi
Operating Temperature - Minimum
-40 Degrees F
Secondary Scale Pressure Measurement - Maximum
400 kPa
Case Liquid
Glycerin
Operating Temperature - Maximum
140 Degrees F

Description

Commercial Pressure Gauge, Nominal Dial Size 2 1/2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material 304 Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Acrylic, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Silver, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 60, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White, Pressure Gauge Type Commercial Pressure Gauge
