  5. Commercial Pressure Gauge, 0 to 60 psi, 2 1/2 in Dial, 1/4 in NPT, Center Back Location

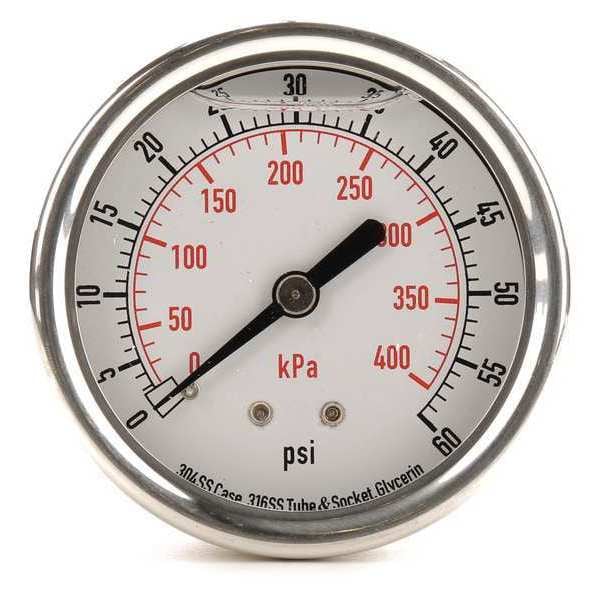

Zoro Select Commercial Pressure Gauge, 0 to 60 psi, 2 1/2 in Dial, 1/4 in NPT, Center Back Location 4CFR5 - main

Commercial Pressure Gauge, 0 to 60 psi, 2 1/2 in Dial, 1/4 in NPT, Center Back Location

  • Mfr # 4CFR5

  • Zoro # G0041806

product price:  $27.49
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Center Back
Process Connection Size
1/4 in
Process Connection Type
NPT
Application
General Purpose
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
4CFR5
Zoro #
G0041806
UPC #
190735502495
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 1/2 in
Nominal Dial Size
2 1/2 in
Nominal Dial Diameter
2 1/2 in

Details

Item
Commercial Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Center Back
Process Connection Type
NPT
Application
General Purpose
Gauge Case Material
304 Stainless Steel
Lens Material
Acrylic
Primary Pressure Range
0 to 60
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
Yes
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
For Use With
Air, Water, and Oils in Hydraulic Equipment, Pressure Washers, Pumps, and Compressors
Smallest Graduation
1 psi
Calibration Certificate Included
No
Gauge Secondary Range Values
0 to 400
Gauge Application
Corrosion-Resistant Case
Gauge Primary Range Smallest Graduation
1
Gauge Filled With
Glycerin
Case Color
Silver
Case Material
304 Stainless Steel
Socket Material
316 Stainless Steel
Wetted Materials
Stainless Steel
Connection Type
MNPT
Scale Type
Dual
Bezel Material
Crimped Stainless Steel
Includes Calibration Certificate
No
Dial Color
White
Ambient Operating Temperature Range
-40 Degrees to 140 Degrees F
Primary Scale Minor Graduations
1, 2
Freeze Resistant Movement
No
Pressure Range Type
Pressure
Non-Sparking
No
Pressure Gauge Type
Commercial Pressure Gauge
Removable Bezel
No
Includes Vent Plug
No
Secondary Pressure Range
0 to 400 kPa
Accuracy Scale
Mid-Scale
Process Connection Gender
Male
Field Fillable
No
Gauge Case Liquid
Glycerin
Cleaned for Oxygen Service
No
Secondary Scale Units
kPa
Vibration Resistance
Liquid-Filled
Includes Mounting Hardware
No
Sensor Material
316 Stainless Steel
Dry Dampening Feature
None
Maximum Pressure
60
Operating Temperature Range
-40 Degrees to 140 Degrees F
Primary Scale Pressure Measurement - Minimum
0 psi
Operating Temperature - Maximum
140 Degrees F
Secondary Scale Pressure Measurement - Minimum
0 kPa
Primary Scale Pressure Measurement - Maximum
60 psi
Operating Temperature - Minimum
-40 Degrees F
Secondary Scale Pressure Measurement - Maximum
400 kPa
Case Liquid
Glycerin

Description

Commercial Pressure Gauge, Nominal Dial Size 2 1/2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material 304 Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Acrylic, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Center Back, Case Color Silver, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 60, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White
