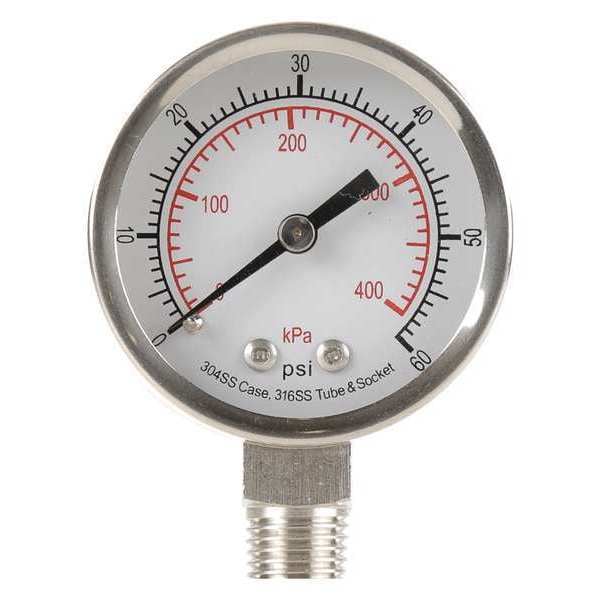

Commercial Pressure Gauge, 0 to 60 psi, 2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # 4FMK6

  • Zoro # G0040826

product price:  $15.75
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Application
Test and Measurement
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4FMK6
Zoro #
G0040826
UPC #
190735508404
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 in
Nominal Dial Size
2 in
Nominal Dial Diameter
2 in

Details

Item
Commercial Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Test and Measurement
Gauge Case Material
304 Stainless Steel
Lens Material
Acrylic
Primary Pressure Range
0 to 60
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Smallest Graduation
1 psi
Gauge Primary Range Smallest Graduation
1
Case Color
Silver
Calibration Certificate Included
No
Gauge Secondary Range Values
0 to 400
Gauge Application
Corrosion-Resistant Case
Case Material
304 Stainless Steel
Socket Material
316 Stainless Steel
Connection Type
MNPT
Wetted Materials
Stainless Steel
Bezel Material
Crimped Stainless Steel
Gauge Case Liquid
None
Includes Vent Plug
No
Scale Type
Dual
Primary Scale Minor Graduations
1
Pressure Gauge Type
Commercial Pressure Gauge
Cleaned for Oxygen Service
No
Sensor Material
316 Stainless Steel
Freeze Resistant Movement
No
Accuracy Scale
Mid-Scale
Dial Color
White
Field Fillable
No
Includes Calibration Certificate
No
Secondary Scale Units
kPa
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F
Includes Mounting Hardware
No
Process Connection Gender
Male
Dry Dampening Feature
None
Non-Sparking
No
Vibration Resistance
None
Removable Bezel
No
Pressure Range Type
Pressure
Secondary Pressure Range
0 to 400
Maximum Pressure
60
Operating Temperature Range
-40 Degrees to 150 Degrees F
Secondary Scale Pressure Measurement - Maximum
400 kPa
Primary Scale Pressure Measurement - Maximum
60 psi
Operating Temperature - Maximum
150 Degrees F
Case Liquid
None
Operating Temperature - Minimum
-40 Degrees F
Primary Scale Pressure Measurement - Minimum
0 psi
Secondary Scale Pressure Measurement - Minimum
0 kPa

Description

Commercial Pressure Gauge, Nominal Dial Size 2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material 304 Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Acrylic, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Silver, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 60, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Commercial Pressure Gauge
