  11. Concentric Reducer, 5" L, Reducer Shape
This item is Discontinued.

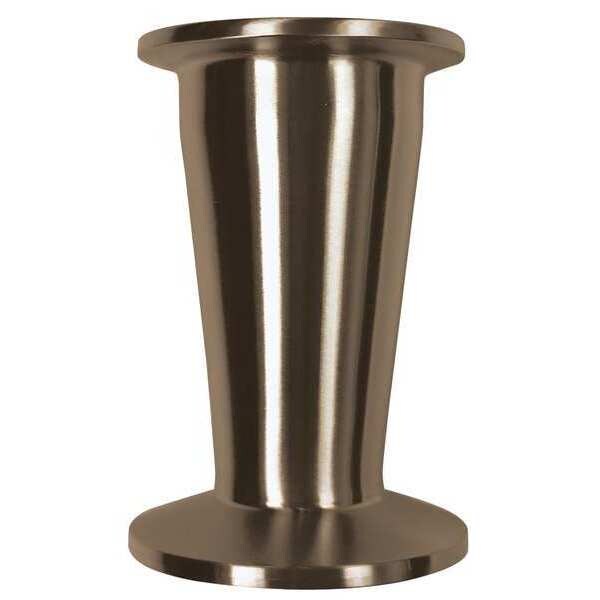

Zoro Select Concentric Reducer, 5" L, Reducer Shape 3114MP-0300X0200-7-4

Concentric Reducer, 5" L, Reducer Shape (Discontinued)

  • Mfr # 3114MP-0300X0200-7-4
  • Zoro # G8484659
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3114MP-0300X0200-7-4
Zoro #
G8484659
UPC #
-
Country of Origin
Multiple

Dimensions

Tube Size
3 in
Pipe Size - Pipe Fitting
3 in x 2 in
Overall Length
5 in
Wall Thickness
0.065 in
For Tube Outside Diameter
2 in, 3 in
Fitting Wall Thickness
0.065 in
Fitting Side A Tube Outer Diameter
3 in
Fitting Side B Tube Outer Diameter
2 in

Details

Item
Concentric Reducer
Specific Fitting Shape
Concentric Reducer
Connection Type
Clamp x Clamp
Surface Finish
32 RA ID /32 RA OD
Max. Pressure
400 psi at 72 Degrees F
Temp. Range
-325 Degrees to 1500 Degrees F
Pipe Fitting Connection Type
Clamp
Specific Pipe Fitting Shape
Reducer
Tube Fitting Material
304 Stainless Steel
Standards
3A
Fitting Connection Type
Clamp
Interior Finish
32 RA
Shape and Schedule
Concentric Reducer
Minimum Operating Temperature
325 Degrees F
Fitting Body Material
304 Stainless Steel
Fitting Shape
Adapter
Exterior Finish
32 RA
Material Grade
304
Fitting Material
Stainless Steel
Maximum Operating Pressure
400 psi @ 72 Degrees F
Interior/Exterior Finish
32 RA / 32 RA
Tube OD
3 in x 2 in
Fitting Side B Connection Type
Clamp
End Connection Type
Clamp
Maximum Operating Temperature
1,500 Degrees F
Fitting Side A Connection Type
Clamp

Description

Concentric Reducer, Fitting Side A Connection Type Clamp, Fitting Side B Connection Type Clamp, Exterior Finish 32 RA, Material Grade 304, Fitting Material Stainless Steel, Fitting Side A Tube Outer Diameter 3 in, Fitting Side B Tube Outer Diameter 2 in, Fitting Wall Thickness 0.065 in, Overall Length 5 in, Specific Fitting Shape Concentric Reducer, Standards 3A, Interior Finish 32 RA, Maximum Operating Pressure 400 psi @ 72 Degrees F, Maximum Operating Temperature 1,500 Degrees F
