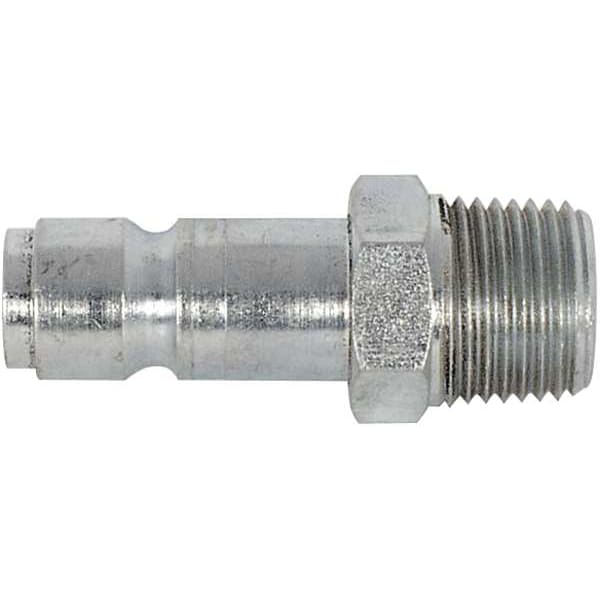

Coupler Plug, MNPT, 1/4, Steel, PK2
Mfr # 5ZVJ3
Zoro # G2333488
Key Features
Specifications
Product Information
- MFR #
- 5ZVJ3
- Zoro #
- G2333488
- UPC #
- -
- Country of Origin
- Unknown
Dimensions
- Hose Fitting Size
- 1/4 in
- Coupling Size
- 1/4 in
- Thread Size
- 1/4"-18
- Body Size - Quick Connect Air Couplings
- 1/4 in
- Overall Length
- 1 5/8 in
- Wire Rope Length
- 1 5/8 in
Details
- Item
- Quick Connect Air Coupling
- Interchange Type
- Tru-Flate-Automotive
- Material
- Steel
- Coupling Component
- Plug
- Hose Fitting Gender
- Male
- Connection Type
- Threaded
- Color
- Silver
- Max. Working Pressure @ 70 F
- 300 psi
- Finish/Coating
- Zinc-Plated
- Connection Thread Type
- NPT
- Material Grade
- GB45
- Operating Temperature - Minimum
- -4 Degrees F
- Operating Temperature - Maximum
- 225 Degrees F
Description
The ZORO SELECT - 5ZVJ3 is a quick coupler plug designed for connection and disconnection when used with a matching coupler and compatible fluid/air lines. This steel plug provides a is designed to form a sealing connection when properly coupled and used within the specified pressure and temperature limits seal and can be connected and disconnected without the use of tools when used with a matching coupler. It features a 1/4 inch body and hose fitting size with a male connection, using a 1/4" NPT thread type. The coupling follows the Tru-Flate-Automotive interchange standard and is rated for a maximum working pressure of 300 psi at 70°F (do not exceed specified ratings). The plug is finished in silver.
Key Features:
- Material: Steel for durability and strength.
- Coupling size: 1/4 inch suitable for corresponding hose or fitting connections.
- Hose fitting gender: Male for insertion into a female coupler.
- Thread size: 1/4" NPT providing standardized threaded connection.
- Interchange type: Tru-Flate-Automotive for compatibility with matching couplers in this series.
- Maximum working pressure: is rated for a maximum working pressure of 300 psi at 70°F (do not exceed specified ratings) at 70°F for operational limits.
- Color: Silver finish visible on the fitting body.
