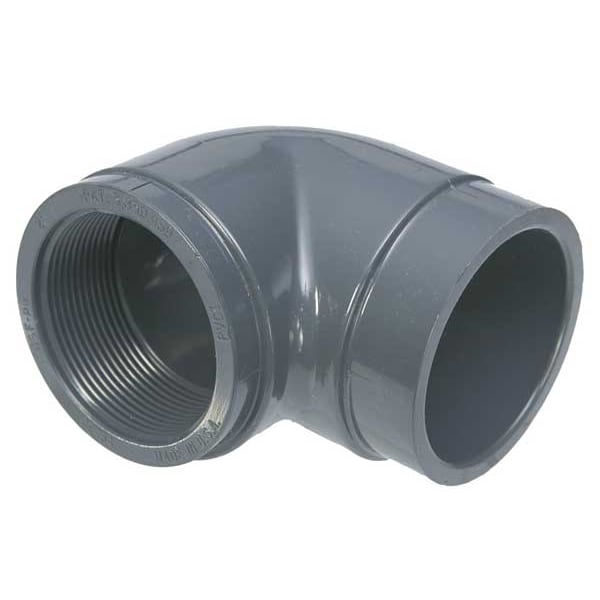

CPVC Elbow, 90 Degrees, Schedule 80, 1/2" Pipe Size, FNPT x Socket

product price: $4.49
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Pipe Fitting Material CPVC
  • Specific Fitting Shape 90 Degree Elbow
  • Fitting Schedule/Class Schedule 80
  • Basic Pipe Fitting Material Plastic
  • Pipe Size - Pipe Fitting 1/2"
See all product information

Product Information

Dimensions

Pipe Size - Pipe Fitting 1/2"
Pipe Size (Fittings) 1/2"
Fitting Side B Nominal Pipe Size 1/2 in
Fitting Side B Outside Diameter 1 1/8 in
Fitting Side A Nominal Pipe Size 1/2 in
Fitting Side A Outside Diameter 1 1/8 in
For Pipe Outside Diameter 1/2 in
Overall Length 1 15/16 in

Details

Item Elbow, 90 Degrees
Pipe Fitting Material CPVC
Specific Fitting Shape 90 Degree Elbow
Fitting Schedule/Class Schedule 80
Basic Pipe Fitting Material Plastic
Basic Pipe Fitting Shape Elbow
Fitting Connection Type FNPT x Socket
Standards ASTM D1784, NSF14 Certified
Max. Temp. 210 Degrees F
Specific Pipe Fitting Shape 90 Degree Elbow
Max. Pressure 424 psi @ 73 Degrees F
Color Gray
Pipe Fitting Schedule/Class Schedule 80
Temp. Range 32 Degrees to 200 Degrees F
Fitting Side B Pipe Threading 14
Fitting Side A Type Socket
Includes Plug No
Fitting Side A Gender Female
Low Lead Certified Standard NSF 61
Includes Seal No
Includes Pre-Applied Thread Sealant No
Fitting Side B Type NPT
For Pipe Schedule 80
Includes Shield No
Application Non-Potable Water, Potable Water
Low Lead Compliance Level Certified
Schedule Schedule 80
Fitting Side B Gender Female
Maximum Operating Pressure 425 psi @ 73 Degrees F

Description

90 Degrees Elbow, CPVC, Schedule 80, For Pipe Schedule 80, 1/2 in, Female, Socket, 1 1/8 in, 1/2 in, Female, NPT, 1 1/8 in, 14, Includes Seal No, For Pipe Outside Diameter 1/2 in, 1 15/16 in Overall Length, 425 psi @ 73 Degrees F Maximum Operating Pressure, 32 Degrees to 200 Degrees F
