CPVC Flange, Schedule 80, 6" Pipe Size, Socket
Mfr # 9854-060
Zoro # G5328075
product price: $92.99
/ea
Free Shipping & Returns
Key Features
Fitting Connection Type
Socket
Pipe Fitting Material
CPVC
Basic Pipe Fitting Shape
Flange
Fitting Schedule/Class
Schedule 80
Pipe Size - Pipe Fitting
6"
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
9854-060
Zoro #
G5328075
UPC #
-
Country of Origin
United States

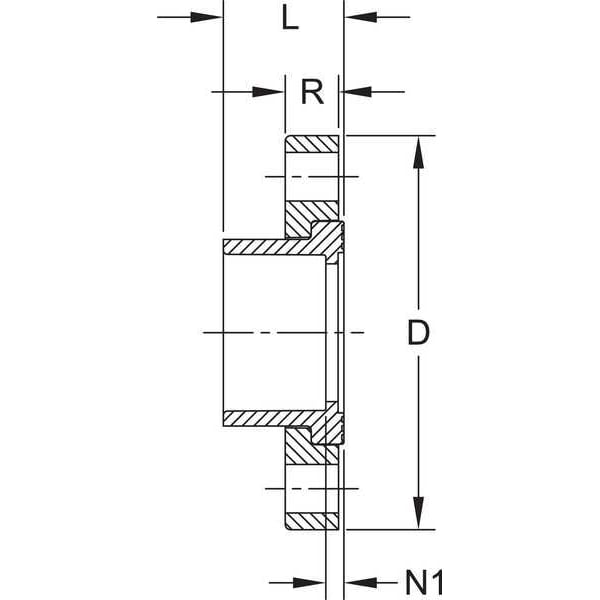

Dimensions
Pipe Size - Pipe Fitting
6"
Outside Dia.
11"
Pipe Size (Fittings)
6"
Flange Thickness
1 1/4 in
Overall Length
3 1/2 in
Flange Outside Diameter
11 in
Bolt Circle Diameter
9 1/2 in
Bolt Hole Diameter
13/16 in
Nominal Pipe Size
6 in
Description
Flange, Raised, 6 in Nominal Pipe Size, Socket, 11 in Flange Outside Diameter, 1 1/4 in Flange Thickness, Schedule 80, Class Class 150, For Pipe Schedule Schedule 80, CPVC, 150 psi Maximum Operating Pressure, 176 Degrees F, Number of Bolt Holes 8, 9 1/2 in Bolt Circle Diameter, 13/16 in Bolt Hole Diameter, 3 1/2 in Overall Length, Gray
