  11. CPVC Union, Schedule 80, 3" Pipe Size, FNPT x FNPT
Shop All CPVC Pipe Fittings
Zoro Select

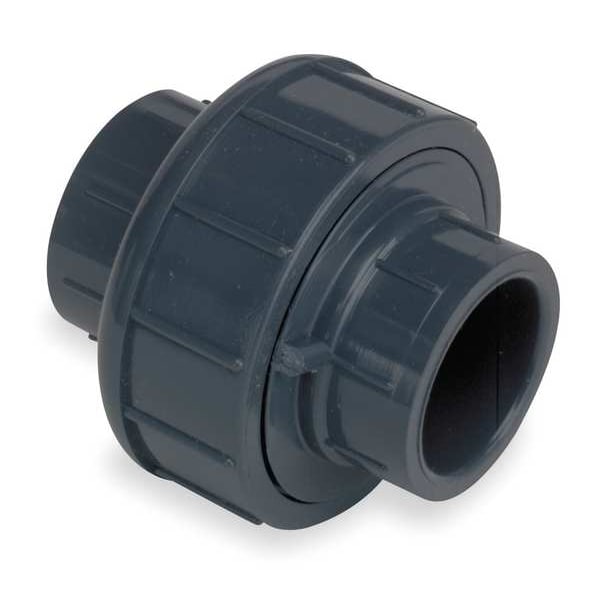

CPVC Union, Schedule 80, 3" Pipe Size, FNPT x FNPT

product price: $141.99
/ea
Free Shipping & Returns
Delivery to commercial address only
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Pipe Fitting Material CPVC
  • Specific Fitting Shape Union
  • Basic Pipe Fitting Material Plastic
  • Fitting Schedule/Class Schedule 80
  • Basic Pipe Fitting Shape Union
See all product information

Product Information

Dimensions

Pipe Size - Pipe Fitting 3"
Pipe Size (Fittings) 3"
Fitting Side A Outside Diameter 4 1/8 in
Overall Length 4 3/4 in
Fitting Side B Outside Diameter 4 1/8 in
Fitting Side B Nominal Pipe Size 3 in
For Pipe Outside Diameter 3 in
Fitting Side A Nominal Pipe Size 3 in

Details

Item Union
Pipe Fitting Material CPVC
Specific Fitting Shape Union
Basic Pipe Fitting Material Plastic
Fitting Schedule/Class Schedule 80
Basic Pipe Fitting Shape Union
Fitting Connection Type FNPT x FNPT
Standards ASTM D1784, NSF14
Pipe Fitting Schedule/Class Schedule 80
Color Gray
Max. Temp. 210 Degrees F
Max. Pressure 150 psi@73 Degrees F
Specific Pipe Fitting Shape Union
Temp. Range 32 Degrees to 200 Degrees F
Application Non-Potable Water, Potable Water
Includes Plug No
For Pipe Schedule 80
Fitting Side A Type NPT
Includes Seal No
Includes Shield No
Fitting Side B Type NPT
Fitting Side B Gender Female
Fitting Side B Pipe Threading 8
Schedule Schedule 80
Low Lead Certified Standard NSF 61
Maximum Operating Pressure 150 psi @ 73 Degrees F
Fitting Side A Pipe Threading 8
Seal Material EPDM
Fitting Side A Gender Female
Low Lead Compliance Level Certified
Includes Pre-Applied Thread Sealant No

Description

Union, CPVC, Schedule 80, For Pipe Schedule 80, 3 in, Female, NPT, 4 1/8 in, 8, 3 in, Female, NPT, 4 1/8 in, 8, Includes Seal No, For Pipe Outside Diameter 3 in, 4 3/4 in Overall Length, 150 psi @ 73 Degrees F Maximum Operating Pressure, 32 Degrees to 200 Degrees F
