  11. Cross Brass Cross, 3/4 in Female NPT X 3/4 in Female NPT

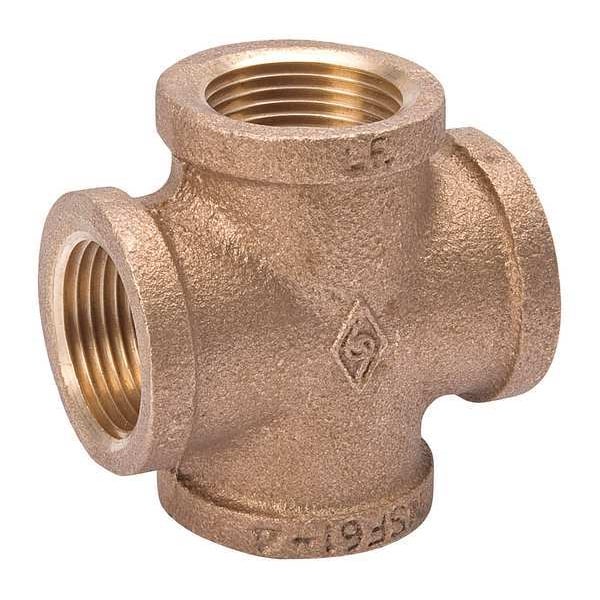

Zoro Select Cross Brass Cross, 3/4 in Female NPT X 3/4 in Female NPT 22UL21 - main

Cross Brass Cross, 3/4 in Female NPT X 3/4 in Female NPT

  • Mfr # 22UL21

  • Zoro # G8552004

product price: $29.69
/ea

Key Features

Pipe Size - Pipe Fitting
3/4"
Specific Fitting Shape
Cross
Pipe Fitting Material
Brass
Tube Size
3/4"
Fitting Connection Type
FNPT
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
22UL21
Zoro #
G8552004
UPC #
190735936511
Country of Origin
Multiple

Dimensions

Pipe Size - Pipe Fitting
3/4"
Tube Size
3/4"
Outside Dia.
3/4"
Pipe Size (Fittings)
3/4"
Pipe Size
3/4"
Fitting Side B Nominal Pipe Size
3/4 in
Fitting Side D Nominal Pipe Size
3/4 in
Fitting Side A Nominal Pipe Size
3/4 in
Fitting Side C Nominal Pipe Size
3/4 in

Details

Specific Fitting Shape
Cross
Pipe Fitting Material
Brass
Fitting Connection Type
FNPT
Fitting Schedule/Class
Class 125
Basic Pipe Fitting Material
Metal
Basic Pipe Fitting Shape
Cross
Item
Cross
Standards
ANSI B 1.20.1, ASME B16.15, ASTM B62
Max. Pressure
125 psi
Specific Pipe Fitting Shape
Cross
Basic Fitting Shape
Cross
Temp. Range
-20 Degrees to 400 Degrees F
Compliance
NSF61 and AB1953
Includes Pre-Applied Thread Sealant
No
Fitting Side B Type
NPT
Includes Seal
No
Fitting Side C Gender
Female
Fitting Side A Type
NPT
Fitting Side D Gender
Female
Low Lead Compliance Level
Certified
Low Lead Certified Standard
NSF 61; AB1953
Maximum Operating Pressure
200 psi
Fitting Side C Type
NPT
Fitting Side A Gender
Female
Class
Class 125
Fitting Side D Type
NPT
Fitting Side B Gender
Female

Description

Cross,Body Material,Pipe Size 3/4 In. x 3/4 In. x 3/4 In. x 3/4 In.,Connection Type FNPT x FNPT x FNPT x FNPT,Max. Pressure 125 psi,Outside Dia. 3/4 In.,Temp. Range -20 Degrees to 400 Degrees F,Standards ASTM B62, ASME B16.15, ANSI B 1.20.1,Compliance NSF61 and AB1953

Restrictions

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
