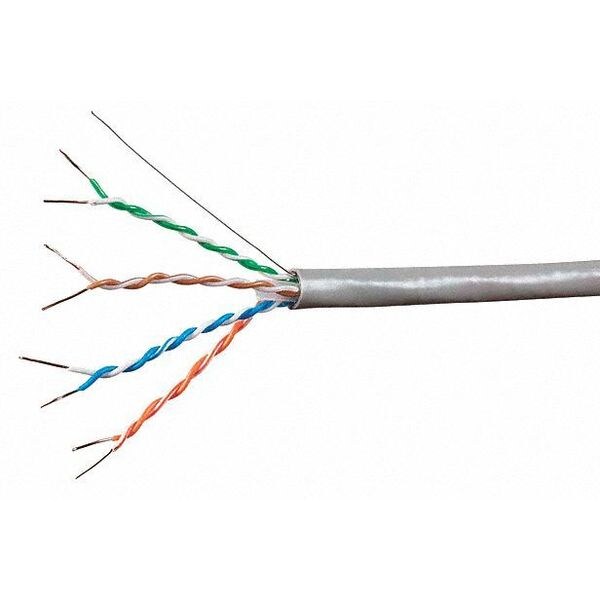

Zoro Select Data Cable, 1000 ft. L, Gray Jacket 18602

Data Cable, 1000 ft. L, Gray Jacket (Discontinued)

Mfr # 18602
Zoro # G3041390

Get a 10% off coupon

Free 30-day returns Return Policy

Get 30 days to pay with Net 30 Apply Now

Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #

18602

Zoro #

G3041390

UPC #

889028050927

Country of Origin

China

Dimensions

Wire Size

23 AWG

Bend Radius

1 3/16 in

Length

1000 ft.

Spool Length

1,000 ft

Conductor Size - Data Cable

23 AWG

Outside Dia.

0.291 in

Details

Item

Data Cable

Standards

ANSI/TIA/EIA 568B and 862, ICEA S-90-661, ISO/IEC 11801 Ed. 2.0, NEC/CEC Type CMR, UL 444, UL and cUL

Plenum Rated

Yes

Shielded

Fire Rating - Data Cable

Riser

Package Type

Spool

Jacket Material

PVC

Solid / Stranded

Solid

Installation Temp. Range

0 Degrees to 60 Degrees C

NEC Article and Type

800 CMR

Jacket Material - Wire and Cable

PVC

Green Environmental Attribute

RoHS 2011/65/EU Compliant

Jacket Color

Gray

Frequency

500 MHz

Number of Conductor Pairs

Shielded / Unshielded

Unshielded

Category - Data Cable

Jacket Material (Wire and Cable)

PVC

Total Number of Conductors - Data Cable

8 (4 Pair)

Category Type

Operating Temp. Range

-20 Degrees to 75 Degrees C

Package Type - Data Cable

Spool

Pulling Force

25 lb

Item - Data Cable

Category Cable

Description

Data Cable, Jacket Color Gray, Jacket Material PVC, Shielded No, NEC Article and Type 800 CMR, Standards ANSI/TIA/EIA 568B and 862, ICEA S-90-661, ISO/IEC 11801 Ed. 2.0, NEC/CEC Type CMR, UL 444, UL and cUL, Package Type Spool, Bend Radius 1 3/16 in, Pulling Force 25 lb
