  11. Dual Wheel Bolt Hole Swivel Cstr w/Brake
Zoro Select Dual Wheel Bolt Hole Swivel Cstr w/Brake 1MMB7 - main

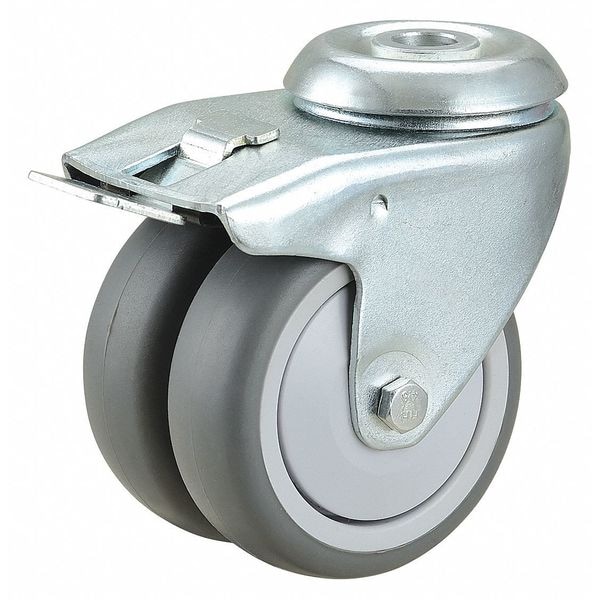

Dual Wheel Bolt Hole Swivel Cstr w/Brake

  • Mfr # 1MMB7

  • Zoro # G1764147

product price: $12.75
/ea

Key Features

Caster Sub-Type
Swivel
Caster Product Group
Swivel Caster with Total Lock
Load Rating
220 lb
Wheel Dia.
3 in
Wheel Width
1 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1MMB7
Zoro #
G1764147
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
3 in
Wheel Width
1 in
Mounting Height
3 15/16 in
Mounting Bolt Dia.
1/2 in
Bolt Hole Dia.
33/64 in
Overall Height
3 15/16 in
Stem Dia.
1/2"

Details

Item
Bolt-Hole Caster
Caster Sub-Type
Swivel
Caster Product Group
Swivel Caster with Total Lock
Load Rating
220 lb
Wheel/Tread Material
Rubber
Wheel/Tread Hardness Rating
Hard
Wheel Bearing Type
Ball
Caster Brake Type
Total Lock
Non-Marking
Yes
Number of Wheels
2
Frame Finish
Zinc Plated
Caster Frame Material
Steel
Wheel Core Material
Plastic
Core Color
Gray
Application
Computer Equipment, Medical Equipment, Patient Lifts
Features
Easy Swiveling and Smooth Rolling, Low Profile
Standards
ANSI ICWM
Includes
Thread Guards
Caster Load Rating Range
Light-Duty
Caster Wheel Shape
Standard
System of Measurement
Inch
Caster Wheel Bearings
Ball
Caster Temp. Range
-40 Degrees to 175 Degrees F
Caster Raceway
Double Ball
Caster Stem Type
Hollow Kingpin
Caster Core Material
Polyolefin
Caster Temp. Range Available
Yes
Wheel Color
Gray
Caster Wheel/Tread Material
Thermoplastic Rubber
Frame Material
Steel
Caster Brake Included
Yes
Tread Shape
Standard
Swivel Raceway Type
Double Ball
Operating Temperature Range
-40 Degrees to 175 Degrees F
Load Rating Range
0 to 299 lb
Wheel/Tread Hardness
88 Shore A
Wheel/Tread Color
Gray
Wheel Hardness Rating
88 Shore A
Operating Temperature - Maximum
-40 Degrees F
Load Capacity - Maximum
220 lb
Operating Temperature - Minimum
175 Degrees F

Description

Bolt-Hole Caster, 33/64 in Bolt Hole Dia., 1/2 in Mounting Bolt Dia., Steel Caster Frame Material, Zinc Plated Frame Finish, 0 to 299 lb Load Rating Range, 220 lb Load Rating, 2 Number of Wheels, Ball, 3 9/10 in Mounting Height, 3 in Wheel Dia., 1 in Wheel Width, Rubber Wheel/Tread Material, 88 Shore A Wheel/Tread Hardness, Hard, Yes Non-Marking
