  10. /
  11. Swivel Plate Caster, Cst Irn, 5 in, 1000 lb
Shop All Plate Casters
Zoro Select

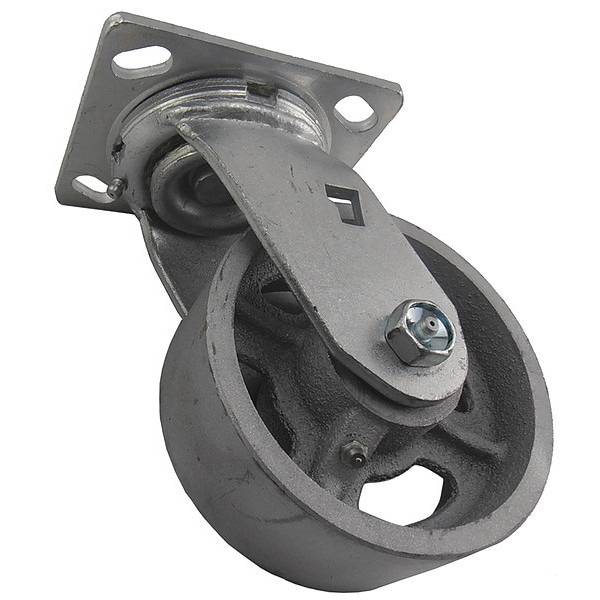

Swivel Plate Caster, Cst Irn, 5 in, 1000 lb

original price: $29.15
14% off
new price: $24.79
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Brake Included No
  • Caster Load Rating Range Medium-Duty
  • Caster Sub-Type Swivel
  • Caster Wheel Shape Standard
  • Caster Wheel/Tread Material Cast Iron
See all product information

Product Information

Dimensions

Overall Height 6-1/2"
Wheel Dia. 5 in
Wheel Width 2 in
Stem Dia. No Stem
Caster Plate Size 4" x 4-1/2"
Mounting Bolt Dia. 3/8 in
Plate Size 4" x 4-1/2"
Mounting Plate Size 4 in x 4 1/2 in
Mounting Height 6 1/2 in

Details

Caster Brake Included No
Caster Load Rating Range Medium-Duty
Caster Sub-Type Swivel
Caster Wheel Shape Standard
Caster Wheel/Tread Material Cast Iron
Load Rating 1000 lb
Number of Wheels 1
Caster Stem Type No Stem/Plate Included
Includes Spanner Bushing
Item Standard Plate Caster
Wheel Color Gray
Plate Caster Bolt Hole Pattern B
Caster Frame Material Steel
Core Color Gray
Frame Material Steel
Inside Bolt Hole Spacing 3 in x 3 in
Caster Plate Thickness 1/4"
Caster Plate Hole Pattern B
Caster Wheel Bearings Roller
Caster Product Group Swivel Caster
Standards ICWM
Thread Guards No
Outside Bolt Hole Spacing 2-5/8 in x 3-5/8 in
Caster Temp. Range Available No
Frame Finish Zinc Plated
Caster Swivel Lock Type No Lock Included
Caster Raceway Double Ball
Caster Core Material Cast Iron
Plate Thickness 1/4"
Caster Brake Type No Brake Included
Non-Marking Yes
Tread Shape Standard
Swivel Raceway Type Double Ball
Wheel Bearing Type Roller
Mounting Plate Bolt Hole Pattern B
Includes Thread Guards No
Swivel Lock Type No Lock Included
Wheel Core Material Cast Iron
Wheel/Tread Material Iron
Number of Mounting Holes 4
Load Rating Range 1000 to 2999 lb
Swivel Construction Kingpin
Wheel/Tread Hardness Rating Extra Hard
Wheel/Tread Color Gray

Description

Swivel, Standard Plate Caster, Load Rating 1000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 2 in, Wheel/Tread Material Iron, Wheel Core Material Cast Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake Included, Tread Shape Standard
