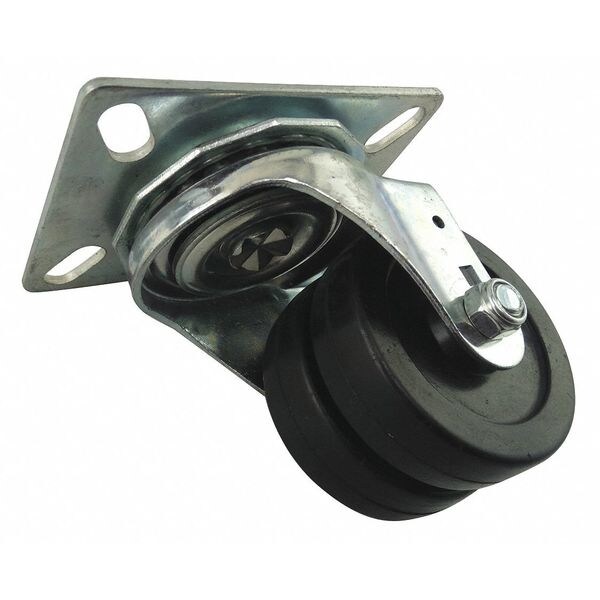

Zoro Select Dual Wheel Swivel Caster, Rubber, 3 in, 350 lb 26Y510 - main

Dual Wheel Swivel Caster, Rubber, 3 in, 350 lb

  • Mfr # 26Y510

  • Zoro # G4805744

product price:  $13.15
/ea

Key Features

Stem Dia.
No Stem
Standards
ANSI ICWM
Mounting Bolt Dia.
5/16 in
Frame Finish
Zinc Plated
Caster Temp. Range Available
Yes
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
26Y510
Zoro #
G4805744
UPC #
-
Country of Origin
China

Dimensions

Stem Dia.
No Stem
Mounting Bolt Dia.
5/16 in
Wheel Width
7/8 in
Wheel Dia.
3 in
Overall Height
3-7/8in
Mounting Plate Size
3 1/8 in x 4 1/8 in
Mounting Height
3 7/8 in
Mounting Plate Thickness
1/8in

Details

Standards
ANSI ICWM
Item
Plate Caster
Frame Finish
Zinc Plated
Caster Temp. Range Available
Yes
Inside Bolt Hole Spacing
1-3/4 in x 3 in
Wheel Color
Black
Caster Plate Hole Pattern
A
Non-Marking
No
Caster Stem Type
No Stem/Plate Included
Number of Wheels
2
Core Color
Black
Caster Sub-Type
Swivel
Caster Brake Included
No
Caster Frame Material
Steel
Outside Bolt Hole Spacing
2-3/8 in x 3-3/8 in
Application
General Purpose
Load Rating
350 lb
Caster Brake Type
No Brake
System of Measurement
Inch
Wheel Core Material
Rubber
Number of Mounting Holes
4
Includes Thread Guards
No
Swivel Construction
Kingpin
Tread Shape
Standard
Swivel Raceway Type
Double Ball
Wheel Bearing Type
Plain
Wheel/Tread Hardness Rating
Hard
Load Rating Range
300 to 999 lb
Swivel Lock Type
No Lock Included
Wheel/Tread Material
Rubber
Wheel/Tread Color
Black
Wheel Hardness Rating
80 Shore D
Load Capacity - Maximum
350 lb
Operating Temperature Range
-40 Degrees to 180 Degrees F
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-40 Degrees F

Description

Swivel, Plate Caster, Load Rating 350 lb, Swivel Lock Type No Lock Included, Wheel Dia. 3 in, Wheel Width 7/8 in, Wheel/Tread Material Rubber, Wheel Core Material Rubber, Non-Marking No, Number of Wheels 2, Caster Brake Type No Brake, Tread Shape Standard

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
