Zoro Select Electric Sequencer, 1 Switch, 1-20 Sec 6UEE6 - main

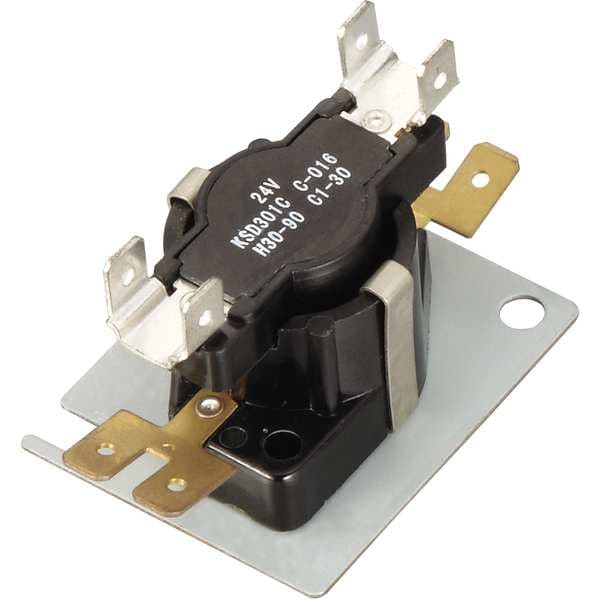

Electric Sequencer, 1 Switch, 1-20 Sec

  • Mfr # 6UEE6

  • Zoro # G3687625

product price: $13.69
/ea

Key Features

On Time (Seconds)
40 to 110
Off Time (Seconds)
1 to 20
Main Switch On Time (Sec.)
1 to 20
Aux. Switch Off Time (Sec.)
1 to 20
Control Volts
24 V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6UEE6
Zoro #
G3687625
UPC #
190735544846
Country of Origin
China

Dimensions

Width (In.)
1 5/8 in
Height (In.)
1 1/2 in
Depth (In.)
1 5/8 in
Overall Depth
1 5/8 in
Overall Width
1 5/8 in
Overall Length
1 1/2 in

Details

On Time (Seconds)
40 to 110
Off Time (Seconds)
1 to 20
Main Switch On Time (Sec.)
1 to 20
Aux. Switch Off Time (Sec.)
1 to 20
Control Volts
24 V
Includes
Double Quick Connect Terminals for Combination Load
Locked Rotor Amps @ 240V
42 A
Number of Timings
1
Type
Strip Heat And/Or Blower Fan In Heat Pumps And Electric Furnaces
Full Load Amps @ 240VAC
7 A
Aux. Switch On Time (Sec.)
40 to 110
Resistive Amps @ 240V
30 A
Item
Electric Sequencer
Number of Switches
1
Pilot Duty 120/480V (VA)
125 VA
Main Switch Off Time (Sec.)
40 to 110
Full Load Current @ 240V AC
7 A
Standards
cURus Recognized
Installation Orientation
Horizontal, Vertical
Cover Material
Phenol Formaldehyde/Copper/Ferrum
Operating Temperature - Maximum
281 Degrees F
Locked Rotor Current @ 240V AC
42 A
Resistive Load Current @ 120V AC
25 A
Auxiliary Switch Off Minimum
1 sec
Resistive Load Current @ 240V AC
25 A
Auxiliary Switch Off Maximum
20 sec
Pilot Duty @ 120V AC
125 VA
Auxiliary Switch On Maximum
110 sec
Main Switch Off Minimum
40 sec
Full Load Current @ 120V AC
10 A
Operating Temperature - Minimum
-20 Degrees F
Main Switch On Maximum
20 sec
Body Material
Phenol Formaldehyde/Copper/Ferrum
Main Switch On Minimum
1 sec
Auxiliary Switch On Minimum
40 sec
Locked Rotor Current @ 120V AC
72 A
Application
HVAC Systems, Refrigeration Systems
Main Switch Off Maximum
110 sec
Voltage
24V AC

Description

Electric Sequencer, Application HVAC Systems, Refrigeration Systems, Auxiliary Switch Off Maximum 20 sec, Auxiliary Switch Off Minimum 1 sec, Auxiliary Switch On Maximum 110 sec, Auxiliary Switch On Minimum 40 sec, Body Material Phenol Formaldehyde/Copper/Ferrum, Cover Material Phenol Formaldehyde/Copper/Ferrum, Full Load Current @ 120V AC 10 A, Full Load Current @ 240V AC 7 A, Installation Orientation Horizontal, Vertical, Locked Rotor Current @ 120V AC 72 A, Locked Rotor Current @ 240V AC 42 A
