  5. Electric Sequencer, 3 Switch, 1-110 Sec

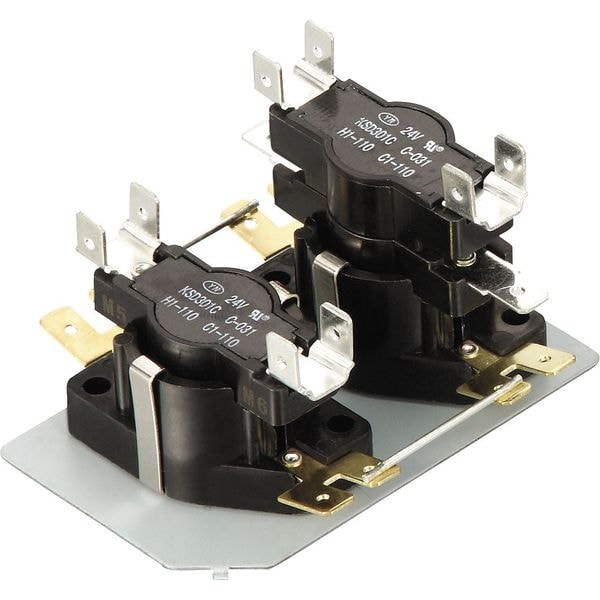

Zoro Select Electric Sequencer, 3 Switch, 1-110 Sec 6UEE9 - main

Electric Sequencer, 3 Switch, 1-110 Sec

  • Mfr # 6UEE9

  • Zoro # G3628055

product price:  $32.25
/ea

Key Features

Control Volts
24 V
Width (In.)
3 1/4 in
Full Load Amps @ 240VAC
7 A
Off Time (Seconds)
1 to 110
Main Switch On Time (Sec.)
1 to 110
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6UEE9
Zoro #
G3628055
UPC #
190735544877
Country of Origin
China

Dimensions

Width (In.)
3 1/4 in
Height (In.)
1 7/8 in
Depth (In.)
2 in
Overall Depth
2 in
Overall Length
1 7/8 in
Overall Width
3 1/4 in

Details

Control Volts
24 V
Full Load Amps @ 240VAC
7 A
Off Time (Seconds)
1 to 110
Main Switch On Time (Sec.)
1 to 110
Includes
Double Quick Connect Terminals for Combination Load
Item
Electric Sequencer
On Time (Seconds)
1 to 110
Number of Timings
3
Type
Strip Heat And/Or Blower Fan In Heat Pumps And Electric Furnaces
Pilot Duty 120/480V (VA)
125 VA
Resistive Amps @ 240V
30 A
Number of Switches
3
Aux. Switch On Time (Sec.)
1 to 110
Main Switch Off Time (Sec.)
1 to 110
Locked Rotor Amps @ 240V
42 A
Aux. Switch Off Time (Sec.)
1 to 110
Pilot Duty @ 120V AC
125 VA
Installation Orientation
Horizontal, Vertical
Body Material
Phenol Formaldehyde/Copper/Ferrum
Auxiliary Switch Off Minimum
1 sec
Auxiliary Switch On Minimum
1 sec
Full Load Current @ 120V AC
10 A
Resistive Load Current @ 120V AC
25 A
Main Switch On Minimum
1 sec
Resistive Load Current @ 240V AC
25 A
Application
HVAC Systems, Refrigeration Systems
Main Switch Off Maximum
110 sec
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature - Maximum
281 Degrees F
Locked Rotor Current @ 240V AC
42 A
Main Switch On Maximum
110 sec
Voltage
24V AC
Locked Rotor Current @ 120V AC
72 A
Main Switch Off Minimum
1 sec
Full Load Current @ 240V AC
7 A
Auxiliary Switch Off Maximum
110 sec
Auxiliary Switch On Maximum
110 sec
Cover Material
Phenol Formaldehyde/Copper/Ferrum
Standards
cURus Recognized

Description

Electric Sequencer, Application HVAC Systems, Refrigeration Systems, Auxiliary Switch Off Maximum 110 sec, Auxiliary Switch Off Minimum 1 sec, Auxiliary Switch On Maximum 110 sec, Auxiliary Switch On Minimum 1 sec, Body Material Phenol Formaldehyde/Copper/Ferrum, Cover Material Phenol Formaldehyde/Copper/Ferrum, Full Load Current @ 120V AC 10 A, Full Load Current @ 240V AC 7 A, Installation Orientation Horizontal, Vertical, Locked Rotor Current @ 120V AC 72 A, Locked Rotor Current @ 240V AC 42 A
