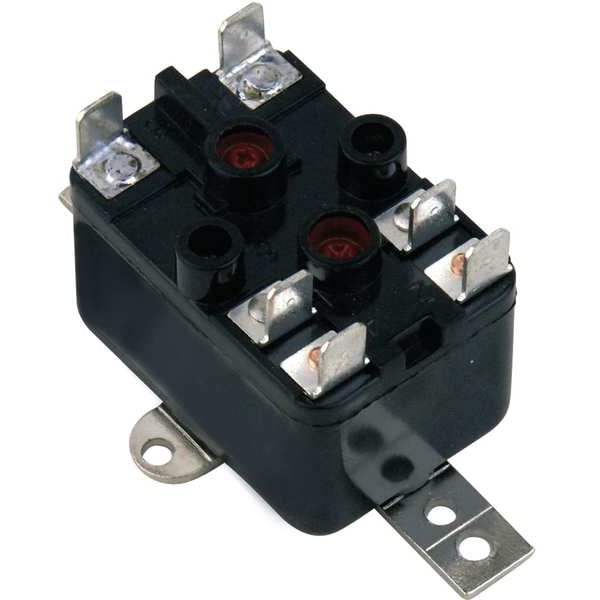

Enclosed Fan Relay, SPDT, 120V Coil

product price: $11.15
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Switch Type SPNO/SPNC
  • Coil Volts 120
  • Full Load Amps @ 120VAC 14 A
  • Height (In.) 2 1/4 in
  • Type Enclosed Fan
See all product information

Product Information

Dimensions

Height (In.) 2 1/4 in
Width (In.) 2 1/8 in
Depth (In.) 2 in
Overall Width 2 1/8 in
Overall Depth 2 in
Overall Length 2 1/4 in

Details

Item Switching Relay
Switch Type SPNO/SPNC
Coil Volts 120
Full Load Amps @ 120VAC 14 A
Type Enclosed Fan
Agency Compliance cURus
Application Resistive Loads, Single Phase Motors, Solenoids, Two Speed Motors
Locked Rotor Amps @ 120V 60 A
Mounting Universal
Full Load Amps @ 240VAC 8 A
Locked Rotor Amps @ 240V 48 A
Base Shape Square
Operating Temperature - Minimum 10 Degrees F
Full Load Current @ 120V AC 14 A
Contact Form SPST
Number of Relays 2
Full Load Current @ 240V AC 8 A
Electrical Connection Material Silver Alloy/Copper
Voltage 120V AC
Frequency 50/60 Hz
Locked Rotor Current @ 120V AC 60 A
Electrical Connection Type Spade Terminal
Mounting Style Surface
Locked Rotor Current @ 240V AC 48 A
Number of Pins 4
Resistive Load Current @ 240V AC 18 A
Operating Temperature - Maximum 195 Degrees F
Operating Humidity - Minimum 5 %
Operating Humidity - Maximum Not Rated
Power Consumption 4 VA
Standards cURus Recognized
Switch Action Normally Closed/Normally Open
Phase Single

Description

Switching Relay, Application Resistive Loads, Single Phase Motors, Solenoids, Two Speed Motors, Base Shape Square, Contact Form SPST, Electrical Connection Material Silver Alloy/Copper, Electrical Connection Type Spade Terminal, Frequency 50/60 Hz, Full Load Current @ 120V AC 14 A, Full Load Current @ 240V AC 8 A, Horsepower @ 120V AC Not Applicable, Horsepower @ 240V AC Not Applicable, Includes Low Voltage Relay Not Applicable, Locked Rotor Current @ 120V AC 60 A
