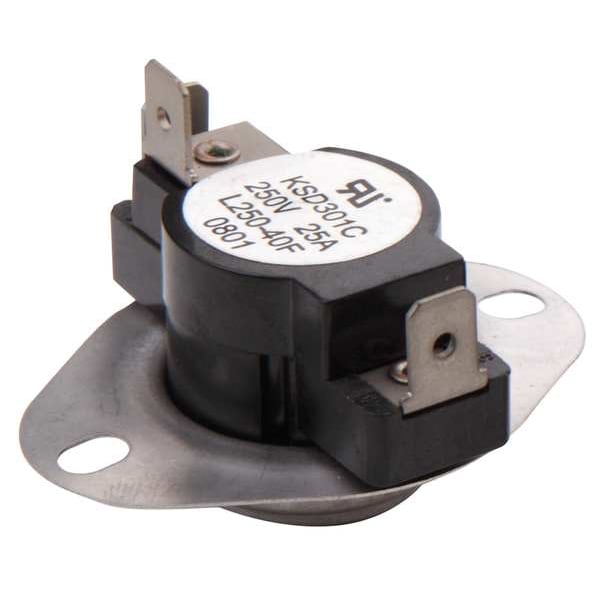

Zoro Select Fan and Limit, 120-140 Temp Range 6UED2 - main

Fan and Limit, 120-140 Temp Range

  • Mfr # 6UED2

  • Zoro # G3723693

product price: $10.55
/ea

Key Features

Temp. Range (F)
120 to 140
Type
Fan and Limit
Switch Type
SPDT
Depth (In.)
1 in
Width (In.)
1 3/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6UED2
Zoro #
G3723693
UPC #
190735544709
Country of Origin
China

Dimensions

Depth (In.)
1 in
Width (In.)
1 3/4 in
Height (In.)
1 1/2 in
Mounting Base Width
1 5/8 in
Mounting Hole Diameter
1/8 in
Terminal Size
1/4 in
Face Diameter
2 in
Mounting Base Length
2 in
Overall Height
1 1/2 in
Overall Depth
1 in
Overall Width
1 3/4 in

Details

Item
Temperature Limit Controller
Temp. Range (F)
120 to 140
Type
Fan and Limit
Switch Type
SPDT
Switch Closes @ (F)
Limit 120, Fan 140
Switch Opens @ (F)
Limit 140, Fan 120
Voltage Range
120 to 277
Resistive Amps @ 120V
25 A
Resistive Amps @ 277V
21.6 A
Resistive Rating 240V
25
Pilot Duty Contacts (VA)
125 VA
Circuit No. 1-Inductive 120V
10
Circuit #1 Switch Closes @ (F)
120 Degrees F
Switch Action
Open and Close on Rise
Inductive Amps @ 120V
10 A
Resistive Rating Circuit #1 @120/240V
25
Circuit No. 1-Inductive 240V
5
Circuit #1 Switch Opens @ (F)
140 Degrees F
Circuit #2 Switch Closes @ (F)
140 Degrees F
Circuit No. 2-Inductive 240V
2.9
Differential
20
Inductive Amps @ 240V
5 A
Circuit No. 2-Inductive 120V
5.8
Circuit #2 Switch Opens @ (F)
120 Degrees F
Contact Form
SPDT
Weight
0.9 oz
Mounting
Surface Mount
Switch Opening Temperature
120 Degrees F, 140 Degrees F
Resistive Amps @ 240V AC
25 A
Switch Closing Temperature
120 Degrees F, 140 Degrees F
Wire Connections
Spade Terminals
Number of Mounting Holes
2
Temperature Differential
20 Degrees F
IP Rating
Not Rated
Product Type
Temperature Limit Controller
Reset Type
Automatic Reset
Application
Limit Control with Fan Bypass
Resistive Amps @ 120V AC
25 A
Resistive Amps @ 277V AC
21.6 A
Mounting Hole Center to Center Distance
1 5/8 in
Input Voltage
120V AC, 277V AC
Standards
cULus Recognized
Pilot Contact Rating
125 VA

Description

Temperature Limit Controller, Application Limit Control with Fan Bypass, Mounting Surface Mount, Contact Form SPDT, Switch Action Open and Close on Rise, Reset Type Automatic Reset, Switch Closing Temperature 120 Degrees F, 140 Degrees F, Switch Opening Temperature 120 Degrees F, 140 Degrees F, Input Voltage 120V AC, 277V AC, Maximum Control Temperature Not Applicable, Minimum Control Temperature Not Applicable, Mounting Base Length 2 in, Mounting Base Width 1 5/8 in
