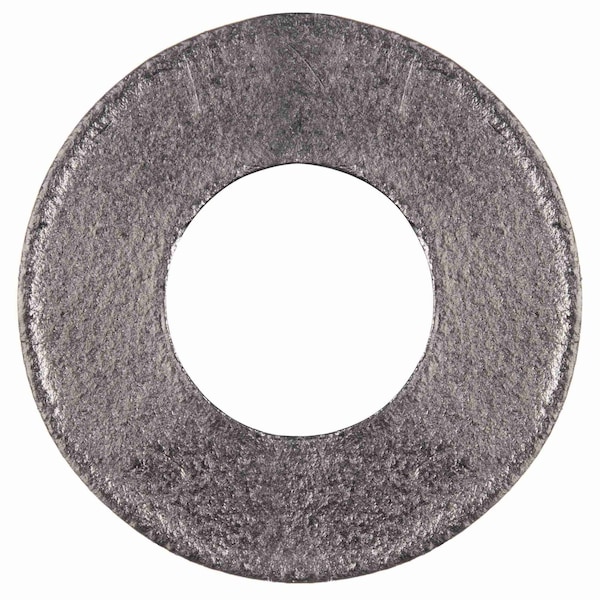

Flange Gasket, Ring, 2" Pipe
- Mfr # BULK-FG-918
- Zoro # G7903303
product price:Â
$
4.45
/ea
Key Features
Pipe Size
2"
Outside Dia.
4-3/8"
Inside Dia.
2 3/8 in
Thickness
1/16 in
Material of Construction
Graphite with Stainless Steel Insert
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- BULK-FG-918
- Zoro #
- G7903303
- UPC #
- 193005022266
- Country of Origin
- United States
- Material of Construction
- Graphite with Stainless Steel Insert
- Color
- Dark Gray
- Type
- Ring Gasket
- Temp. Range (F)
- -400° to 975° F
- Standards
- ASME B16.21
- Binder Material
- None
- Insert Material
- 316 Stainless Steel
- Metal Detectable Gasket
- No
- Wire Color
- Dark Gray
- Metal Detectable
- No
- Reinforced
- Yes
- FDA Approved
- No
- For Piping System
- Extreme Pressure, High Temperature
- Item
- Ring Flange Gasket
- For Flange ANSI Class
- 300
- Gasket Material
- Graphite
- Resistance Properties
- Chemical-Resistant, Temperature-Resistant
- X-Ray Detectable
- No
- System of Measurement
- Inch
- Hardness
- Not Rated
- Product Type
- Ring Gasket
- Maximum Operating Pressure
- 300 psi
- Minimum Operating Temperature
- -400 Degrees F
- Maximum Operating Temperature
- 975 Degrees F
Dimensions
- Pipe Size
- 2"
- Outside Dia.
- 4-3/8"
- Inside Dia.
- 2 3/8 in
- Thickness
- 1/16 in
- Inside Diameter
- 2 3/8 in
- For Pipe Size
- 2 in
Description
Ring Flange Gasket, Gasket Material Graphite, Insert Material 316 Stainless Steel, For Pipe Size 2 in, For Flange ANSI Class 300, Binder Material None, Color Gray, Inside Diameter 2 3/8 in, Minimum Operating Temperature -400 Degrees F, Maximum Operating Temperature 975 Degrees F, Outside Diameter 4 3/8 in, Thickness 1/16 in, Product Type Ring Gasket, Metal Detectable Gasket No, Included Fasteners Not Applicable, Hardness Not Rated, Includes Mounting Hardware No, X-Ray Detectable No
