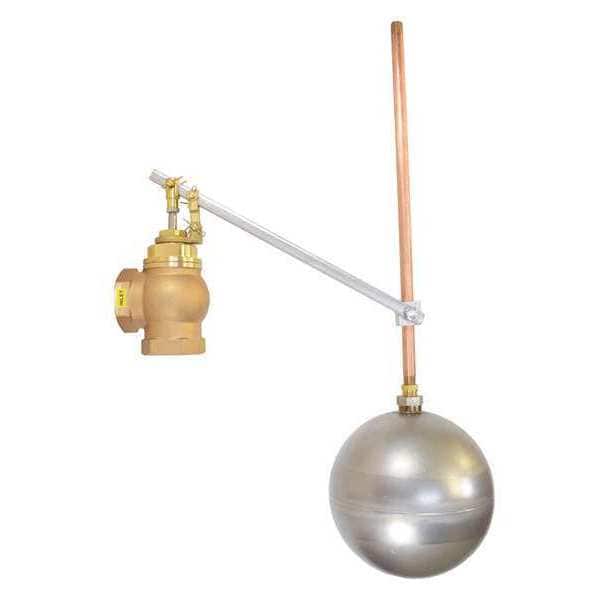

Float Valve, Bronze, FNPT, 100 psi, 1-1/2"

  • Mfr # AHL150-GR

  • Zoro # G0955363

product price:
$
1,081.99
/ea
Free Shipping & Returns

Key Features

Pipe Size
1 1/2"
Float Size
7"
Connection Type
FNPT
Body Material
Bronze
Float Material
Stainless Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
AHL150-GR
Zoro #
G0955363
UPC #
-
Country of Origin
Taiwan, Province of China
Item
Float Valve
Connection Type
FNPT
Body Material
Bronze
Float Material
Stainless Steel
Rod Material
Brass
Mounting
Horizontal Piping
Valve Flow - Flow (2)
41 gpm
Max. Pressure
100 psi
Max. Temp.
450 Degrees F
Valve Flow - Pressure (2)
20 psi
Features
Angle Body Design, Heavy-Duty, Threaded Outlet
Valve Flow - Flow (1)
125 gpm
Rod Thread
1/4 in NPT
Valve Flow - Pressure (1)
60 psi
Valve Material
Bronze
Flow Rate
125 gpm @ 60 psi
Operating Temperature - Maximum
100 Degrees F
Connection Gender - Side 1
Female
Connection Type - Side 2
NPT
Connection Type - Side 1
NPT
Manufacturer Warranty
1 yr
For Media
Water
Includes Float and Rod
Float and Rod Included
Seal Material
PTFE
Maximum Pressure - Operating
100 psi
Arm Adjustability
Adjustable
Connection Gender - Side 2
Female
Seat Style
Single Seated
Float Shape
Cylindrical
Valve Body Style
Angle
Operating Temperature - Minimum
33 Degrees F

Description

Float Valve Assembly, Mounting Horizontal Piping, Size 1 1/2 in, Connection Type FNPT, Rod Thread 1/4 In. NPT, Rod Length 16 in, Rod Material Brass, Body Material Bronze, Valve Flow - Pressure (1) 60 psi, Valve Flow - Flow (1) 125 gpm, Valve Flow - Pressure (2) 20 psi, Valve Flow - Flow (2) 41 gpm, Max. Pressure 100 psi, Max. Temp. 450 Degrees F, Features Angle Body Design, Heavy-Duty, Threaded Outlet, Valve Material Bronze, Float Material Stainless Steel, Float Size 7 in
