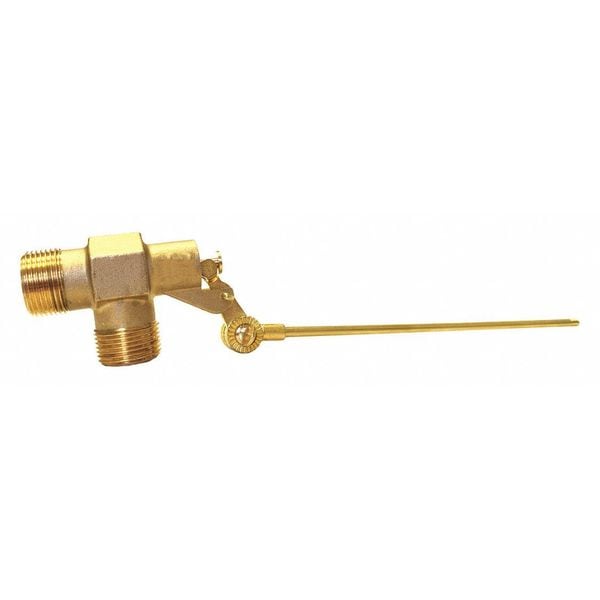

Float Valve, MNPT Connection Type, 3/4"

Mfr # R400-3/4-7
Zoro # G6041240

22.29

Key Features

Connection Type

MNPT

Body Material

Brass

Valve Flow - Pressure (1)

35 psi

Valve Flow - Flow (1)

21 gpm

Max. Temp.

180 Degrees F

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: R400-3/4-7
Zoro #: G6041240
UPC #: -
Country of Origin: United States

Dimensions

Rod Length: 10 in
Size: 3/4 in
Connection Size - Side 1: 3/4 in
Connection Size - Side 2: 3/4 in
Nominal Valve Size: 3/4 in

Details

Item: Float Valve and Rod
Connection Type: MNPT
Body Material: Brass
Valve Flow - Pressure (1): 35 psi
Valve Flow - Flow (1): 21 gpm
Max. Temp.: 180 Degrees F
Mounting: Horizontal Piping
Valve Flow - Pressure (2): 85 psi
Rod Thread: 1/4"-20
Features: Angle Body Design, Heavy-Duty, Threaded Outlet
Valve Material: Brass
Rod Material: Brass
Max. Pressure: 100 psi
Valve Flow - Flow (2): 40 gpm
Flow Rate: 21 gpm @ 35 psi, 32.5 gpm @ 65 psi, 40 gpm @ 85 psi
For Media: Water
Operating Temperature - Maximum: 180 Degrees F
Connection Type - Side 2: NPT
Seal Material: Buna-N
Operating Temperature - Minimum: 33 Degrees F
Manufacturer Warranty: 1 yr
Includes Float and Rod: Rod Only-No Float
Seat Style: Single Seated
Connection Gender - Side 2: Male
Valve Body Style: Angle
Arm Adjustability: Adjustable
Maximum Pressure - Operating: 100 psi
Connection Type - Side 1: NPT
Connection Gender - Side 1: Male

Description

Float Valve and Rod, Mounting Horizontal Piping, Size 3/4 in, Connection Type MNPT, Rod Thread 1/4 In.-20, Rod Length 10 in, Rod Material Brass, Body Material Brass, Valve Flow - Pressure (1) 35 psi, Valve Flow - Flow (1) 21 gpm, Valve Flow - Pressure (2) 85 psi, Valve Flow - Flow (2) 40 gpm, Max. Pressure 100 psi, Max. Temp. 180 Degrees F, Features Angle Body Design, Heavy-Duty, Threaded Outlet, Valve Material Brass, Float Material Not Applicable
