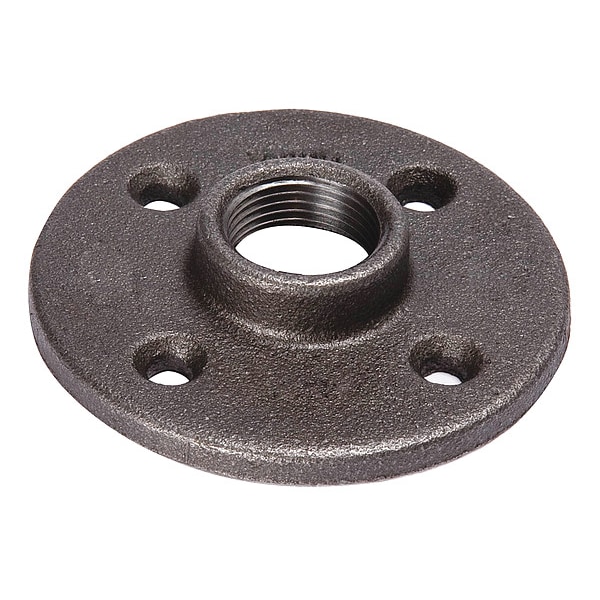

Floor Flange Floor Flange, 3" Pipe, Flanged x FNPT, Malleable Iron, Class 150
Mfr # 521-610
Zoro # G2134946
product price:Â
$
31.29
/ea
Key Features
Specific Fitting Shape
Floor Flange
Fitting Connection Type
Flanged x FNPT
Pipe Fitting Material
Malleable Iron
Pipe Size (Fittings)
3"
Class
Class 150
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 521-610
- Zoro #
- G2134946
- UPC #
- -
- Country of Origin
- China
Dimensions
- Pipe Size (Fittings)
- 3"
- Pipe Size - Pipe Fitting
- 3 in
- Overall Length
- 3 29/32 in
- Flange Outside Diameter
- 7 29/32 in
- Thread Size
- 3 in -8
- Bolt Hole Diameter
- 5/8 in
- Flange Thickness
- 1/4 in
- Nominal Pipe Size
- 3 in
- Wire Rope Length
- 3 29/32 in
- Length
- 3 29/32 in
Description
Flange, Flat, 3 in Nominal Pipe Size, Flanged x FNPT, 7 29/32 in Flange Outside Diameter, 1/4 in Flange Thickness, 3 29/32 in Overall Length, Malleable Iron, Plain, Grade A, Class Class 150, For Pipe Schedule Schedule 40, 300 psi @ 77 Degrees F Maximum Operating Pressure, 150 psi Max. Steam Pressure, -20 Degrees to 366 Degrees F, Number of Bolt Holes 4, Not Applicable Bolt Circle Diameter, 5/8 in Bolt Hole Diameter
