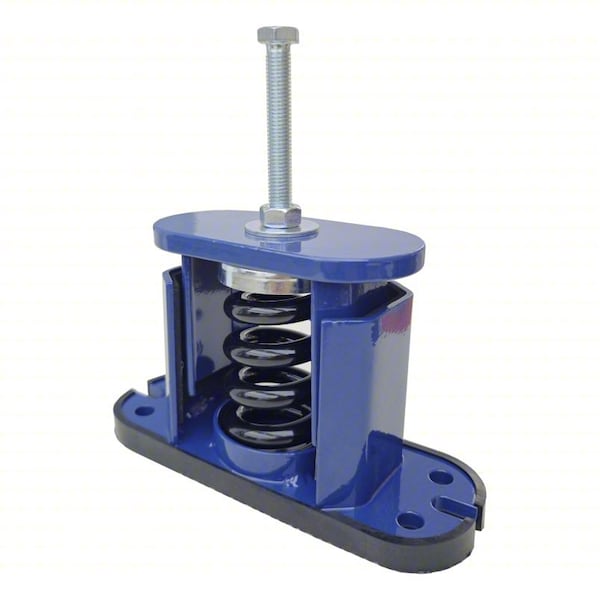

Floor Mount Vibration Isolator, Spring
- Mfr # 852C52
- Zoro # G916065916
product price:Â
$
72.39
/ea
Key Features
Spring Color
Black
System of Measurement
Inch
Includes Spring
Spring Included
Rated Deflection - Minimum
0.75 in
Operating Temperature - Maximum
176 Degrees F
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 852C52
- Zoro #
- G916065916
- UPC #
- -
- Country of Origin
- China
- Item
- Floor-Mount Vibration Isolator
- Spring Color
- Black
- System of Measurement
- Inch
- Includes Spring
- Spring Included
- Rated Deflection - Minimum
- 0.75 in
- Operating Temperature - Maximum
- 176 Degrees F
- Rated Deflection - Maximum
- 1 in
- Center-to-Center Mounting Hole Distance
- 6 1/2 in
- Isolator Material
- Spring
- Rated Capacity - Maximum
- 1,650 lb
- Rated Capacity - Minimum
- 1,240 lb
- Load Downward Compression - Maximum
- 1,650 lbf
- Durometer
- 65A
- Includes
- Nut, Top Bolt, Washer
- Operating Temperature - Minimum
- -4 Degrees F
Dimensions
- Overall Depth
- 8 7/16 in
- Dimension H
- 5 1/8 in
- Overall Height
- 5 1/8 in
- Dimension L
- 8 7/16 in
- Thread Size
- M12×1.75
- Dimension T
- 9/16 in
- Screw Size
- M12
- Isolator Diameter
- 2 5/16 in
- Overall Width
- 3 in
- Dimension A
- 5.75 in
Description
Item Floor-Mount Vibration Isolator, Color Mark Not Applicable, Spring Color Black, Includes Nut, Top Bolt, Washer, Dimension A 5.75 in, Dimension T 9/16 in, Dimension G Not Applicable, Dimension H 5 1/8 in, Dimension I Not Applicable, Dimension J Not Applicable
