  5. Grade 5, 3/8"-16 Hex Head Cap Screw, Zinc Plated Steel, 1 in L, 50 PK

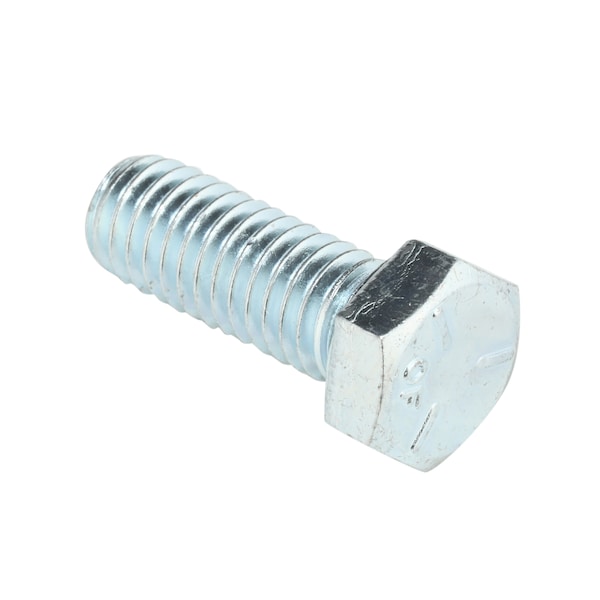

Zoro Select Grade 5, 3/8"-16 Hex Head Cap Screw, Zinc Plated Steel, 1 in L, 50 PK U01200.037.0100 - main

CAD Drawings

Download CAD Files

Shop ZORO SELECT

Grade 5, 3/8"-16 Hex Head Cap Screw, Zinc Plated Steel, 1 in L, 50 PK

  • Mfr # U01200.037.0100

  • Zoro # G5337936

CAD Available
product price:  $11.95
/pk 50, $0.24/ea

Key Features

External Hex Drive
Grade 5 Material Grade/Class
CAD Drawing
System of Measurement
Inch
Thread Size
3/8"-16
Head Width
9/16 in
Material
Steel
Finish
Zinc Plated
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
U01200.037.0100
Zoro #
G5337936
UPC #
-
Country of Origin
Multiple

Dimensions

Thread Size
3/8"-16
Fastener Length
1 in
Head Width
9/16 in
Min. Thread Length
1 in
Head Height
15/64 in

Details

CAD Available
Yes
System of Measurement
Inch
Drive
External Hex
Material Grade/Class
Grade 5
Material
Steel
Finish
Zinc Plated
Thread Style
Fully Threaded
Thread Direction
Right Hand
Standards
SAE J429
Item
Hex Head Cap Screw
Rockwell Hardness
HRC19
Proof Load
74,000 to 85,000 psi
Thread Type
Coarse
Tensile Strength
105,000 psi
Threadlocker Minimum Temperature
3/8"-16
Globally Sourced
Globally Sourced
Dimensional Standards
ASME B18.2.1
Thread Fit
2A
Manufacturer Location
Globally Sourced
Material Quality Standards
SAE J429
Fastener Industry Standards
ASME B18.2.1

Description

The ZORO SELECT - U01200.037.0100 is a Hex Head Cap Screw, a type of fastener characterized by its hexagonal-shaped head. These screws are commonly used in construction, manufacturing, and engineering projects. The screw is manufactured according to ASME B18.2.1 dimensional standards for potential compatibility with similar products.

  • Drive: It features an external hex drive that requires a wrench or socket for installation or removal.
  • Fastener Length: With a length of 1 inch, this is an indication of the maximum depth it could potentially reach when inserted into material.
  • Finish: Zinc Plated finish may contribute to durability and corrosion resistance.
  • Globally Sourced: Procured from international manufacturers offering diverse range of quality and price options.
  • Material & Grade/Class: Made from steel with Grade 5 classification which suggests potential strength for various applications.
  • Tensile Strength: Has a reported tensile strength of 105,000 psi as per manufacturer's specifications; actual performance may vary based on usage conditions.
  • Thread Direction & Size: Right hand thread direction designed for tightening clockwise; Thread size is specified as 3/8"-16 which should correspond with matching nuts or holes
