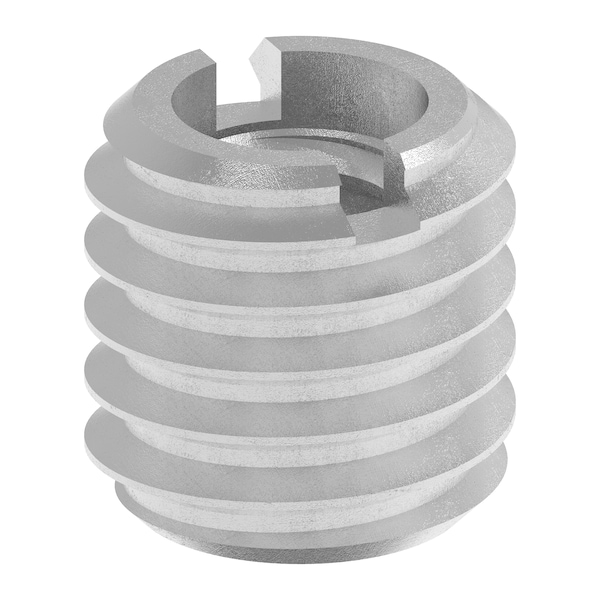

Heavy Wall Self Locking Thread Insert, 1/4"-20 Int Thrd Sz, Steel
Mfr # EZ-329-4IC
Zoro # G809228152
CAD Available
product price: $57.69
/eaKey Features
CAD Drawing
Internal Thread Size
1/4"-20
Material
Steel
Overall Length
7/16 in
Insert Diameter
7/16 in
External Thread Size
7/16"-14
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
EZ-329-4IC
Zoro #
G809228152
UPC #
847554010884
Country of Origin
United States
Dimensions
Internal Thread Size
1/4"-20
Overall Length
7/16 in
Insert Diameter
7/16 in
External Thread Size
7/16"-14
Drill Bit Size
U
Minimum Installation Depth
1/2 in
Maximum Hole Diameter
0.368 in
Compatible Tap Size
7/16"-14
Description
Self Locking Thread Insert, Compatible Material Metal, Compatible Tap Size 7/16 In.-14, Drill Bit Size U, External Thread Fit 2A, External Thread Size 7/16 In.-14, Finish Black Phosphate, Insert Diameter 7/16 in, Internal Thread Fit 2B, Internal Thread Size 1/4 In.-20, Material Steel, Material Grade/Class 12L14, Maximum Hole Diameter 0.368 in, Minimum Installation Depth 1/2 in, Overall Length 7/16 in, System of Measurement Inch, Thread Direction Right Hand, Thread Type Coarse, Fine
