  9. Heavy Wall Self Locking Thread Insert, 3/8"-16 Int Thrd Sz, Steel, 10 PK

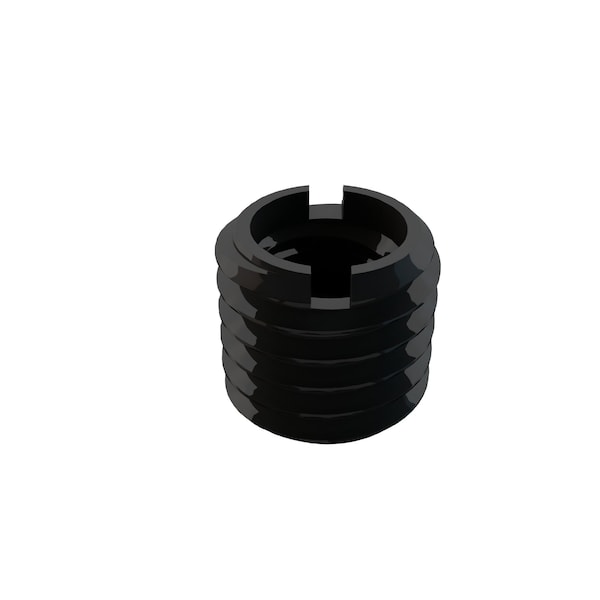

Zoro Select Heavy Wall Self Locking Thread Insert, 3/8"-16 Int Thrd Sz, Steel, 10 PK 329-6IC-PK10 - main

CAD Drawings

Download CAD Files

Heavy Wall Self Locking Thread Insert, 3/8"-16 Int Thrd Sz, Steel, 10 PK

  • Mfr # 329-6IC-PK10

  • Zoro # G909228168

CAD Available
product price: $15.85
/pk 10, $1.59/ea

Key Features

CAD Drawing
Internal Thread Size
3/8"-16
Material
Steel
Overall Length
33/64 in
Insert Diameter
9/16 in
External Thread Size
9/16"-12
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
329-6IC-PK10
Zoro #
G909228168
UPC #
847554005965
Country of Origin
United States

Dimensions

Internal Thread Size
3/8"-16
Overall Length
33/64 in
Insert Diameter
9/16 in
External Thread Size
9/16"-12
Drill Bit Size
31/64 in
Minimum Installation Depth
19/32 in
Maximum Hole Diameter
0.484 in
Compatible Tap Size
9/16"-12

Details

Item
Self Locking Thread Insert
Material
Steel
Wall Type
Heavy Wall
Thread Type
UNC
Installation Method
Drive Tool, Screwdriver
Tensile Strength (PSI)
78,300 psi
Finish
Black Phosphate
Brinell Hardness
163
Compatible with Manufacturer Model Number
500-5
Compatible Material
Metal
System of Measurement
Inch
Material Grade/Class
12L14
Features
Pre-Applied Adhesive
External Thread Fit
2A
Internal Thread Fit
2B
Thread Direction
Right Hand
Compatible Manufacturer Part Number
500-5
Compatible Manufacturer Model Number
500-5
For Use With Mfr. Model Number
500-5
Compatible with Manufacturer Model No.
500-5
Compatible with Mfr. Model No.
500-5
For Use with Mfr Model Number
500-5
Compatible Pump Manufacturer Part Number
500-5
Compatible Mfr. Model Number
500-5
CAD Available
Yes

Description

Self Locking Thread Insert, Compatible Material Metal, Compatible Tap Size 9/16 In.-12, Drill Bit Size 31/64, External Thread Fit 2A, External Thread Size 9/16 In.-12, Finish Black Phosphate, Insert Diameter 9/16 in, Internal Thread Fit 2B, Internal Thread Size 3/8 In.-16, Material Steel, Material Grade/Class 12L14, Maximum Hole Diameter 0.484 in, Minimum Installation Depth 19/32 in, Overall Length 33/64 in, System of Measurement Inch, Thread Direction Right Hand, Thread Type Coarse
