  9. Heavy Wall Self Locking Thread Insert, 3/8"-16 Int Thrd Sz, Steel

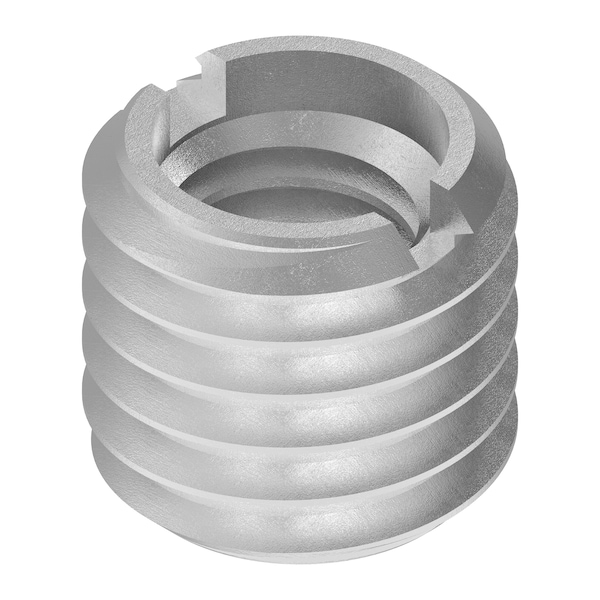

Zoro Select Heavy Wall Self Locking Thread Insert, 3/8"-16 Int Thrd Sz, Steel EZ-329-6IC - main

CAD Viewer & Download Files

Heavy Wall Self Locking Thread Insert, 3/8"-16 Int Thrd Sz, Steel

  • Mfr # EZ-329-6IC

  • Zoro # G509228186

CAD Available
product price: $66.39
/ea

Key Features

CAD Drawing
Internal Thread Size
3/8"-16
Material
Steel
Overall Length
33/64 in
Insert Diameter
9/16 in
External Thread Size
9/16"-12
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
EZ-329-6IC
Zoro #
G509228186
UPC #
847554010907
Country of Origin
United States

Dimensions

Internal Thread Size
3/8"-16
Overall Length
33/64 in
Insert Diameter
9/16 in
External Thread Size
9/16"-12
Drill Bit Size
31/64 in
Minimum Installation Depth
19/32 in
Maximum Hole Diameter
0.484 in
Compatible Tap Size
9/16"-12

Details

CAD Available
Yes
Item
Self Locking Thread Insert
Material
Steel
Wall Type
Heavy Wall
Thread Type
UNC
Installation Method
Drive Tool, Screwdriver
Finish
Black Phosphate
Brinell Hardness
163
Includes
(10) Threaded Inserts, Drill, Tap and Drive-Tool
Features
Easy to use Solution for Repairing or Reinforcing Tapped Holes in Metal, Everything Needed for Installation in a Convenient Kit, Ideal for Soft Metals, Like Aluminum, Cast Iron and Magnesium
Compatible Material
Metal
System of Measurement
Inch
Drive Type
Slotted
Internal Thread Fit
2B
Material Grade/Class
12L14
External Thread Fit
2A
Thread Direction
Right Hand

Description

Self Locking Thread Insert, Compatible Material Metal, Compatible Tap Size 9/16 In.-12, Drill Bit Size 31/64, External Thread Fit 2A, External Thread Size 9/16 In.-12, Finish Black Phosphate, Insert Diameter 9/16 in, Internal Thread Fit 2B, Internal Thread Size 3/8 In.-16, Material Steel, Material Grade/Class 12L14, Maximum Hole Diameter 0.484 in, Minimum Installation Depth 19/32 in, Overall Length 33/64 in, System of Measurement Inch, Thread Direction Right Hand, Thread Type Coarse
